Installation [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY

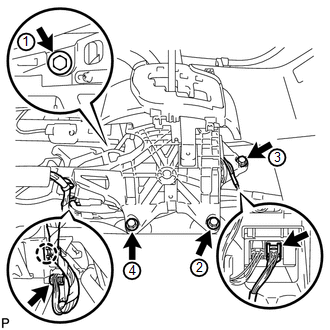

    1. Install the transmission floor shift with the 4 bolts. Tighten the bolts in the order shown in the illustration.
      Fig 1: Transmission Floor Shift Assembly Tightening Sequence
      GTY601479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 14 N.m (143 kgf/cm, 10 ft.lbf)

    2. Connect the clamp and 2 connectors.
  2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Install the cable outer of the transmission control cable to the shift lever retainer, and install a new clip.
      GTY546215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

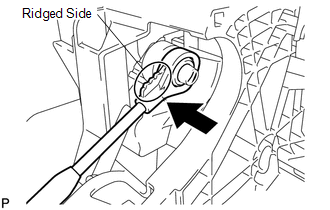

    2. Connect the transmission control cable end to the shift lever.
      GTY565100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure to install the cable end so that the inner cable is not twisted. Confirm that the cable end's ridged side is facing upward.

  3. INSTALL FRONT CONSOLE BOX ASSEMBLY
    1. Install the front console box assembly. Refer to:

      INSTALLATION [08/2015 - 08/2019]

      INSTALLATION [08/2019 - ]

  4. INSPECT SHIFT LEVER POSITION

    See step  1[08/2015 - 08/2019]

    See step  1[08/2019 - ]

  5. ADJUST SHIFT LEVER POSITION

    See step  2
