Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

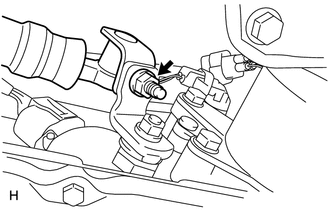

  1. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the nut and disconnect the cable.
      GTY611471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Disconnect the switch connector.

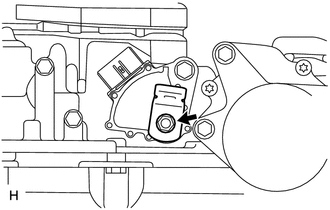

    2. Remove the nut, spring washer and transmission control shaft lever RH.
      GTY607017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

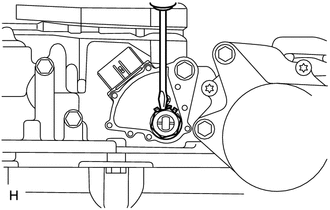

    3. Using a screwdriver, bend the tabs of the lock washer.
      GTY607020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

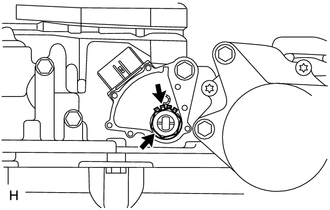

    4. Remove the lock nut and lock washer.
      GTY581072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

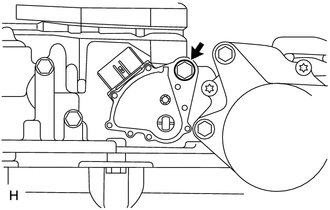

    5. Remove the bolt and switch.

      HINT:

      Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch as the detent spring may become detached from the manual valve lever shaft.

      GTY581053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
