Installation [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

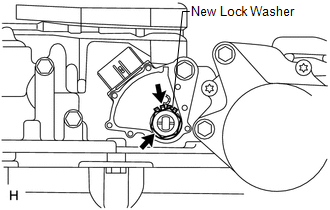

Temporarily install the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install a new lock washer and the nut.

Torque: 6.9 N.m (70 kgf/cm, 61 in.*lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Temporarily install the control shaft lever RH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Turn the control shaft lever RH counterclockwise until it stops, and then turn it clockwise 2 notches to set it to the N position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Align the groove with the neutral basic line.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Hold the switch in the position described above and tighten the bolt.
Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

Using a screwdriver, bend the tabs of the lock washer.

Install the transmission control shaft lever RH with the spring washer and nut.

Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)

CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the cable with the nut.
  Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

  NOTE:
  When connecting the cable to the transmission control shaft lever, make sure the cable's L bracket faces the outside of the vehicle.
INSPECT SHIFT LEVER POSITION
See step 1[08/2015 - 08/2019]

See step 1[08/2019 - ]
ADJUST SHIFT LEVER POSITION
See step 2
INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
See step 1
