Reassembly [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL FRONT OIL PUMP OIL SEAL

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using SST and a hammer, tap in a new oil seal.
  - SST: 09950-60010
    1. 09951-00650
  - SST: 09950-70010
    1. 09951-07100
  HINT:

  The oil seal end should be flush with the outer edge of the pump body.
2. Coat the lip of the oil seal with MP grease.
FIX FRONT OIL PUMP BODY SUB-ASSEMBLY
1. Place the oil pump body on the torque converter clutch.
INSTALL FRONT OIL PUMP DRIVEN GEAR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Coat the driven gear with ATF.
2. Install the driven gear to the oil pump body.
INSTALL FRONT OIL PUMP DRIVE GEAR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Coat the drive gear with ATF.
2. Install the drive gear to the oil pump body.
INSTALL FRONT OIL PUMP BODY O-RING

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Coat a new O-ring with ATF and install it to the oil pump body.

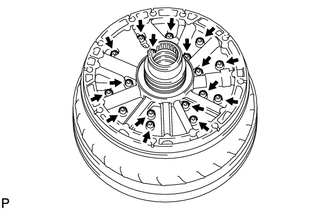

INSTALL STATOR SHAFT ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Align the stator shaft with the bolt holes.
2. Install the 17 bolts.
  Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

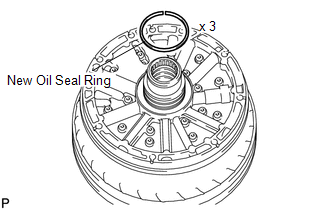

INSTALL CLUTCH DRUM OIL SEAL RING

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Coat 3 new oil seal rings with ATF.
2. Squeeze the ends of the 3 oil seal rings together so that the overlap distance is 8 mm (0.314 in.) or less, and then install them to the starter shaft groove.
  NOTE:
  Do not excessively widen the rings.

  HINT:

  After installing the oil seal rings, check that they rotate smoothly.
INSPECT OIL PUMP DRIVE GEAR ROTATION
See step 4
INSTALL FRONT OIL PUMP BODY O-RING

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Coat a new O-ring with ATF and install it to the oil pump.
