Inspection [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a dial indicator, measure the inside diameter of the oil pump body bush.
  Standard inside diameter

  45.064 to 45.078 mm (1.774 to 1.775 in.)
  1. If the inside diameter is greater than the standard, replace the oil pump body sub-assembly.
INSPECT STATOR SHAFT ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a dial indicator, measure the inside diameter of the stator shaft bush.
  Standard inside diameter

  25.900 to 25.921 mm (1.020 to 1.021 in.)
  1. If the inside diameter is greater than the standard, replace the stator shaft assembly.

INSPECT CLEARANCE OF OIL PUMP ASSEMBLY

GTY130339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push the driven gear to one side of the body.
Using a feeler gauge, measure the body clearance.
Standard body clearance

0.10 to 0.17 mm (0.00394 to 0.00669 in.)

Maximum body clearance

0.17 mm (0.00669 in.)
1. If the body clearance is greater than the maximum, replace the drive gear, driven gear or pump body assembly.

Using a feeler gauge, measure the tip clearance between the driven gear teeth and drive gear teeth.

GTY110309

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard tip clearance

0.070 to 0.150 mm (0.00276 to 0.00591 in.)

Maximum tip clearance

0.150 mm (0.00591 in.)

If the tip clearance is greater than the maximum, replace the drive gear, driven gear or pump body assembly.

Using a steel straightedge and feeler gauge, measure the side clearance of both gears.

GTY130338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard side clearance

0.03 to 0.05 mm (0.00118 to 0.00197 in.)

Maximum side clearance

0.05 mm (0.00197 in.)

If the side clearance of both gears is greater than the maximum, replace the drive gear, driven gear or pump body assembly.

HINT:

There are 7 different thicknesses for the drive and driven gears.

Standard Drive and Driven Gears Thickness

Mark	Thickness
0	11.636 to 11.642 mm (0.4581 to 0.4583 in.)
1	11.643 to 11.649 mm (0.4584 to 0.4586 in.)
2	11.650 to 11.656 mm (0.4587 to 0.4589 in.)
3	11.657 to 11.663 mm (0.4589 to 0.4592 in.)
4	11.664 to 11.670 mm (0.4592 to 0.4594 in.)
5	11.671 to 11.677 mm (0.4595 to 0.4597 in.)
6	11.678 to 11.684 mm (0.4598 to 0.4600 in.)

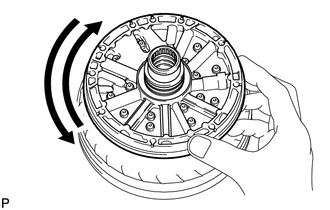

INSPECT FRONT OIL PUMP DRIVE GEAR ROTATION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Place the oil pump body on the torque converter clutch.
2. Check that the drive gear rotates smoothly.
3. Remove the oil pump assembly from the torque converter.
