Disassembly [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT OIL PUMP BODY O-RING
    GTY110254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the O-ring from the oil pump.

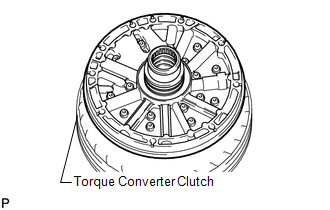

  2. FIX OIL PUMP ASSEMBLY
    GTY587379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Place the oil pump body on the torque converter.

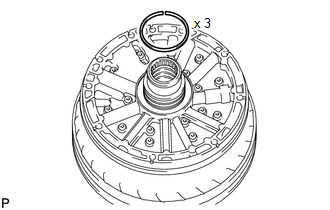

  3. REMOVE CLUTCH DRUM OIL SEAL RING
    GTY555608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 oil seal rings.
  4. REMOVE STATOR SHAFT ASSEMBLY
    GTY558641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 17 bolts, and then remove the stator shaft from the oil pump body.
  5. REMOVE FRONT OIL PUMP BODY O-RING
    GTY110305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the O-ring from the oil pump body.
    2. Remove the oil pump body from the torque converter clutch.
  6. INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY

    See step  1

  7. INSPECT STATOR SHAFT ASSEMBLY

    See step  2

  8. INSPECT CLEARANCE OF OIL PUMP ASSEMBLY

    See step  3

  9. REMOVE FRONT OIL PUMP DRIVE GEAR
    GTY611411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT OIL PUMP DRIVEN GEAR
    GTY610832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT OIL PUMP OIL SEAL
    GTY558632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, pry out the oil seal.
      NOTE:

      Be careful not to damage the transmission case. Wrap the tip of the screwdriver with tape.
