Components [08/2015 - ]

WARNING: This page is about a different variant/trim than selected.

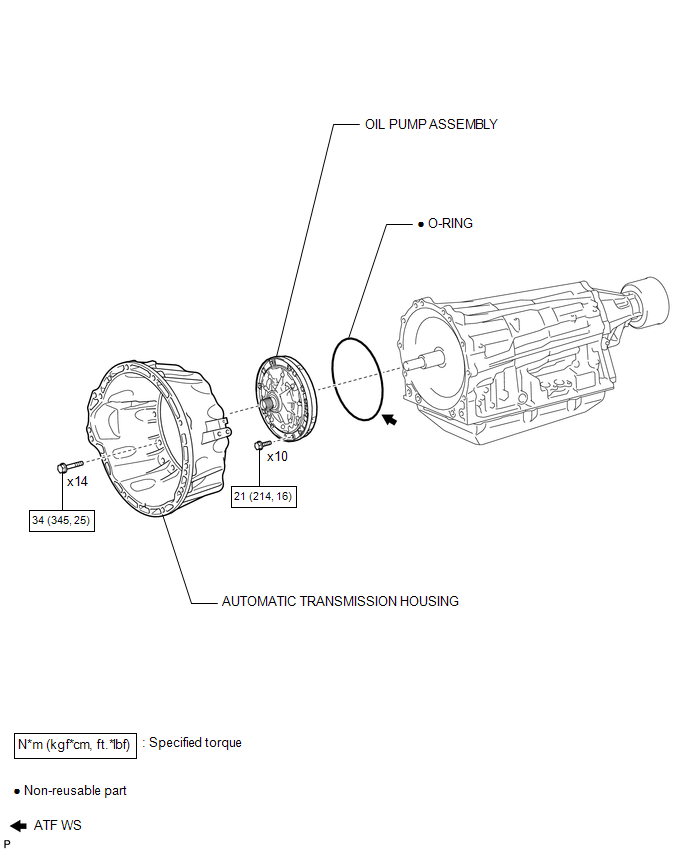

Fig 1: Oil Pump Replacement Components With Torque Specifications (1 Of 2)
GTY539441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

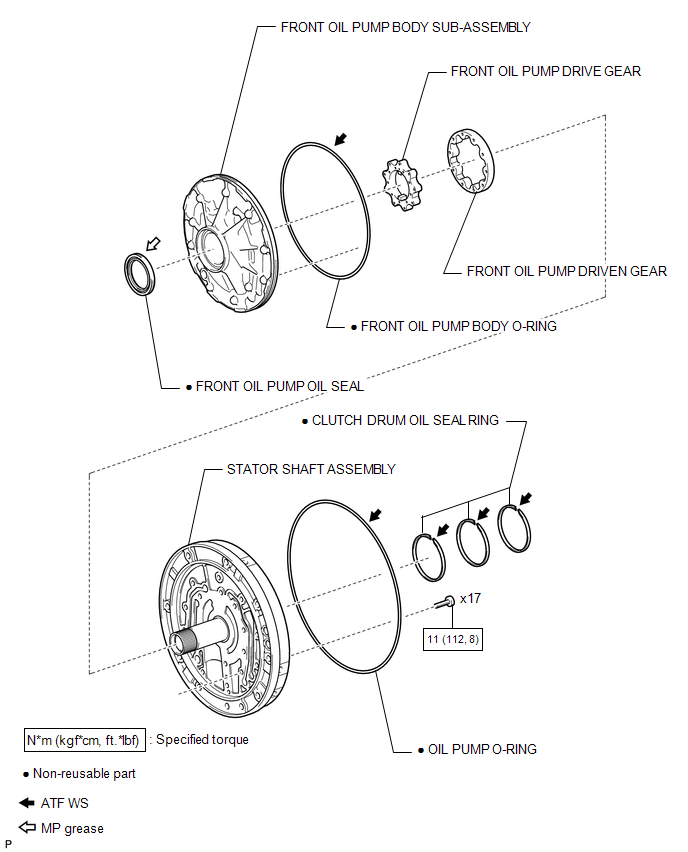

Fig 2: Oil Pump Replacement Components With Torque Specifications (2 Of 2)
GTY565894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
