Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN ENGINE COOLANT

    Refer to: PROCEDURE - Step 2

  2. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to: PROCEDURE - Step 6

  3. DISCONNECT WATER BY-PASS PIPE ASSEMBLY
    1. Remove the bolt and disconnect the 2 water by-pass hoses from the transmission oil cooler. Then separate the by-pass pipe from the automatic transmission.

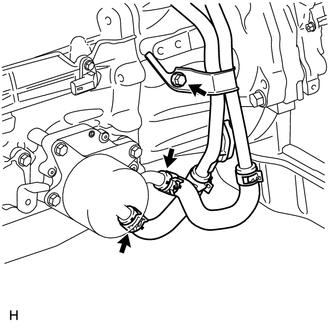

      GTY588460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to catch any coolant which flows out of the water by-pass hoses.

  4. REMOVE TRANSMISSION OIL COOLER ASSEMBLY
    1. Remove the 3 bolts and transmission oil cooler with transmission oil cooler spacer.

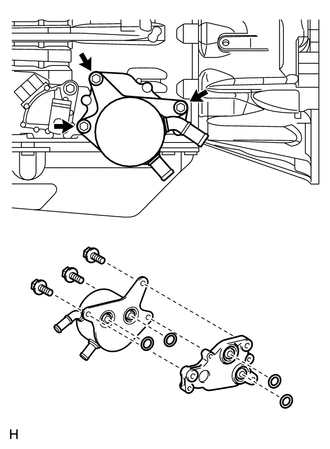

      GTY610710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate the transmission oil cooler from the transmission oil cooler spacer.
    3. Remove the 4 O-rings.
