Components [08/2015 - ]

WARNING: This page is about a different variant/trim than selected.

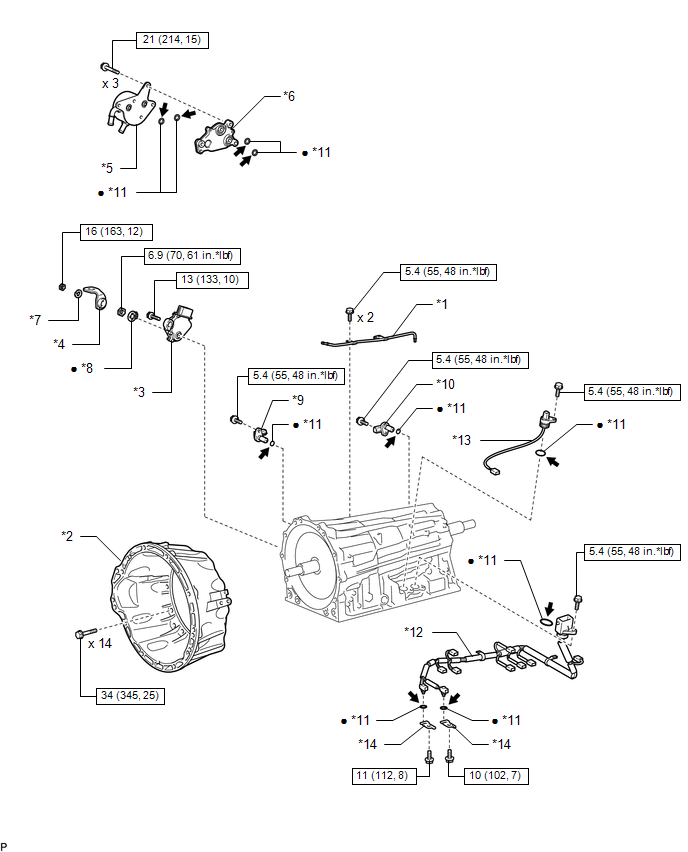

Fig 1: Automatic Transmission Unit Replacement Components With Torque Specifications (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AUTOMATIC TRANSMISSION BREATHER TUBE	*2	AUTOMATIC TRANSMISSION HOUSING
*3	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*4	TRANSMISSION CONTROL SHAFT LEVER RH
*5	TRANSMISSION OIL COOLER ASSEMBLY	*6	TRANSMISSION OIL THERMOSTAT
*7	SPRING WASHER	*8	LOCK WASHER
*9	SPEED SENSOR NT	*10	SPEED SENSOR SP2
*11	O-RING	*12	NO. 1 TRANSMISSION WIRE
*13	NO. 2 TRANSMISSION WIRE	*14	TEMPERATURE SENSOR CLAMP
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine ATF WS	-	-

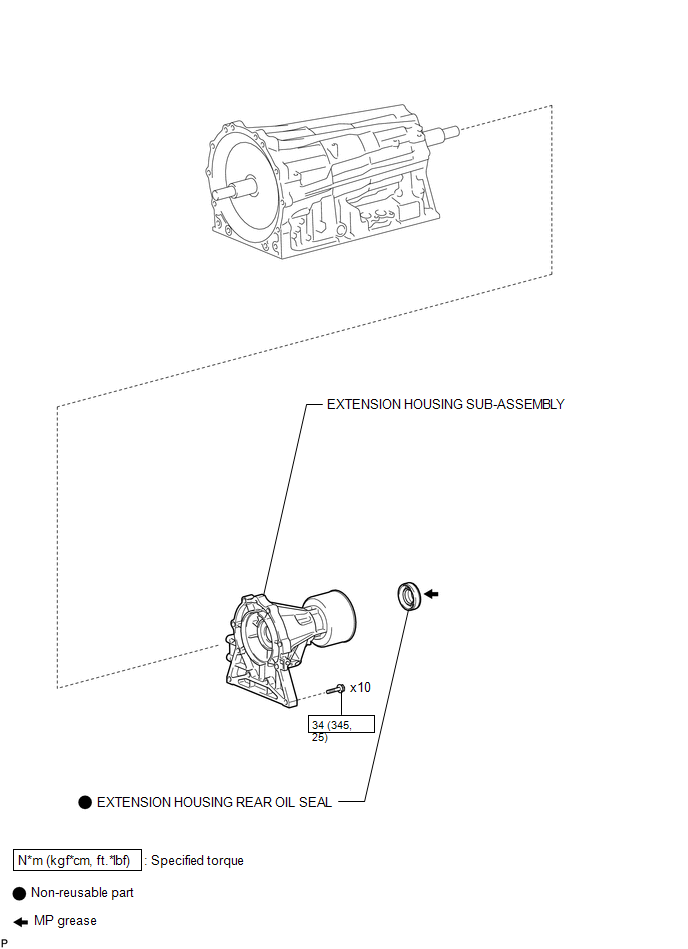

Fig 2: Automatic Transmission Unit Replacement Components With Torque Specifications (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

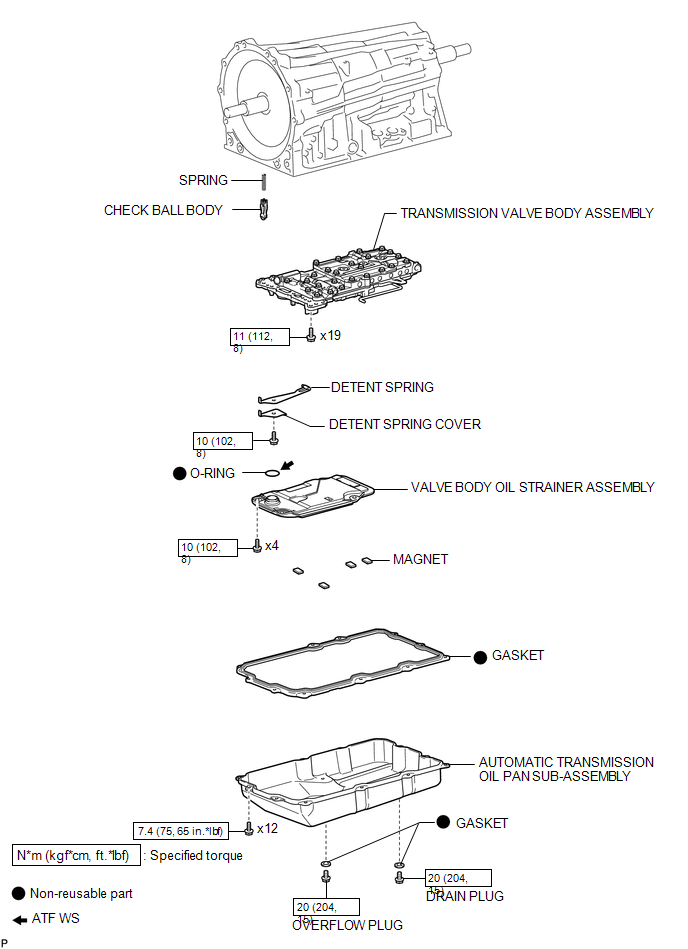

Fig 3: Automatic Transmission Unit Replacement Components With Torque Specifications (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

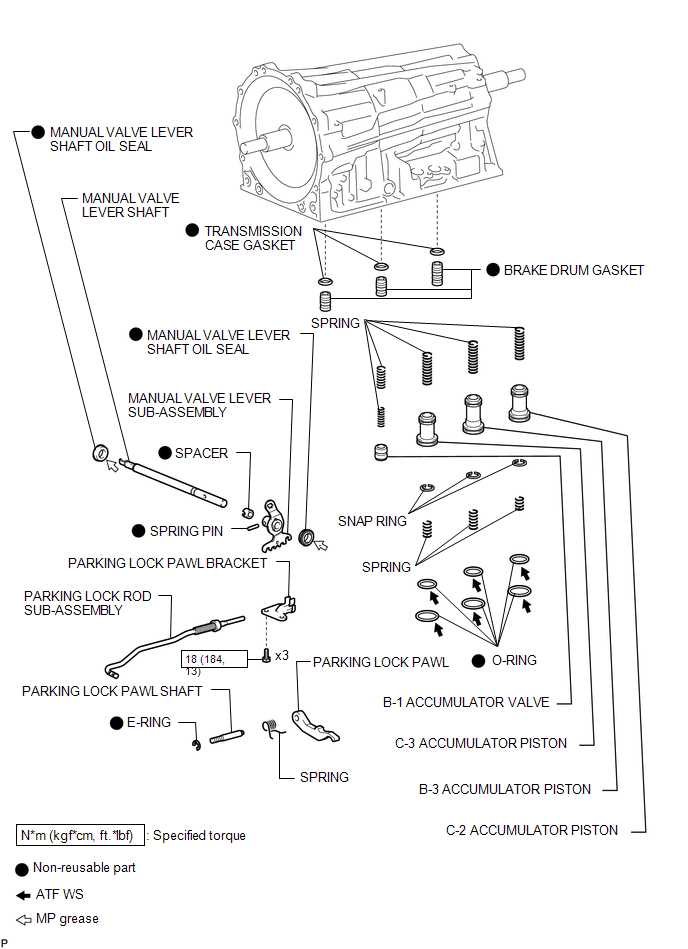

Fig 4: Automatic Transmission Unit Replacement Components With Torque Specifications (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

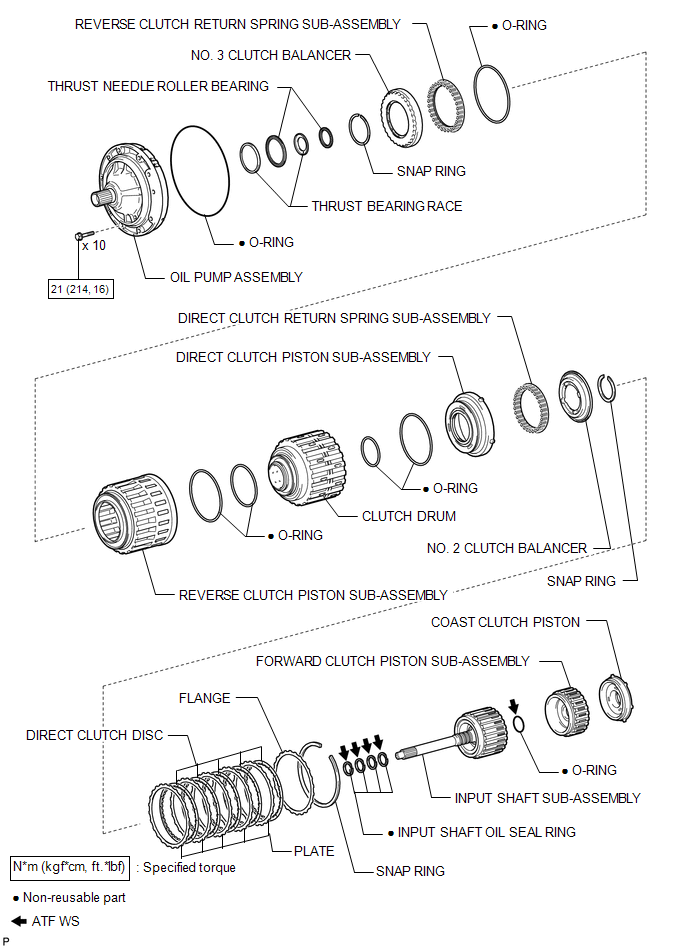

Fig 5: Automatic Transmission Unit Replacement Components With Torque Specifications (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

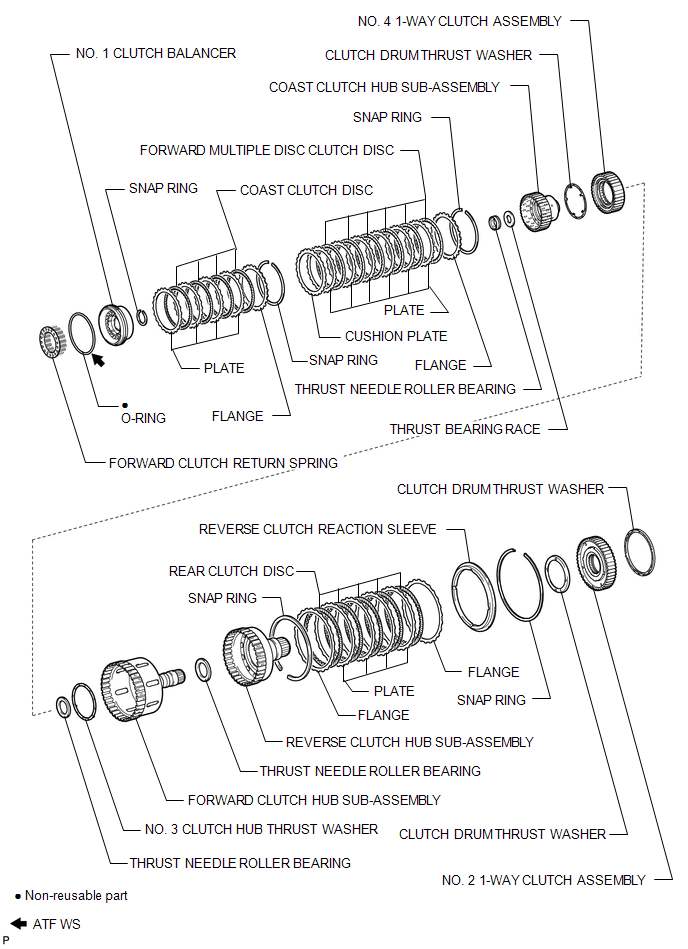

Fig 6: Automatic Transmission Unit Replacement Components (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

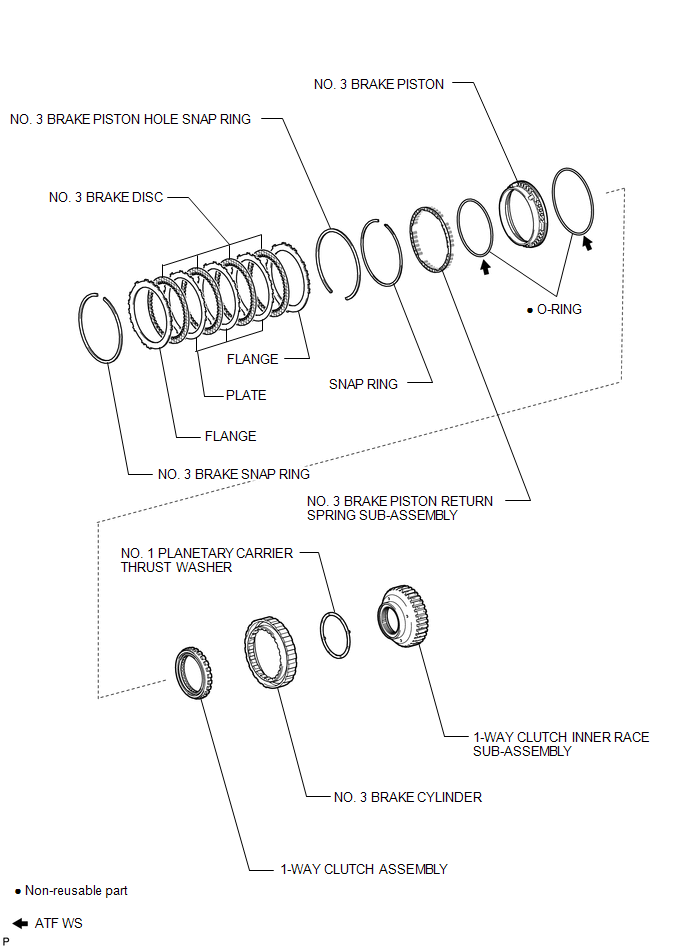

Fig 7: Automatic Transmission Unit Replacement Components (7 Of 10)

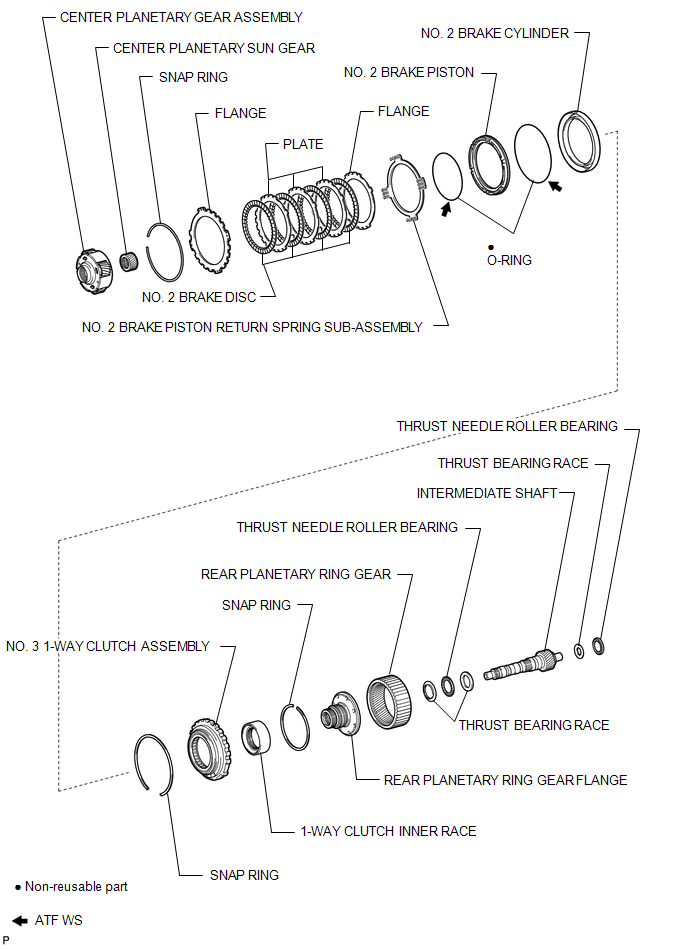

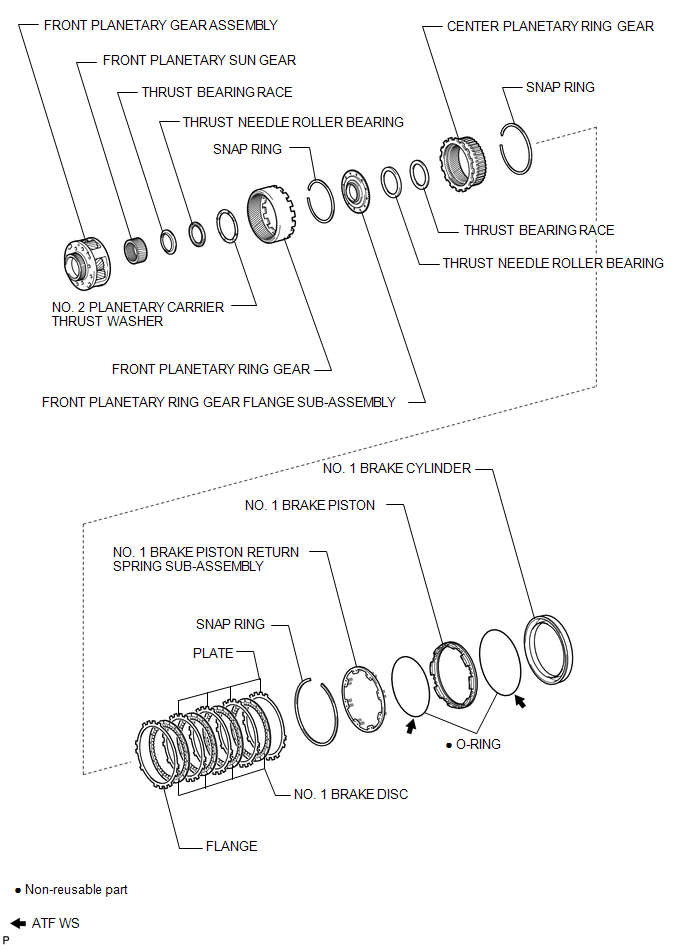

Fig 8: Automatic Transmission Unit Replacement Components (8 Of 10)

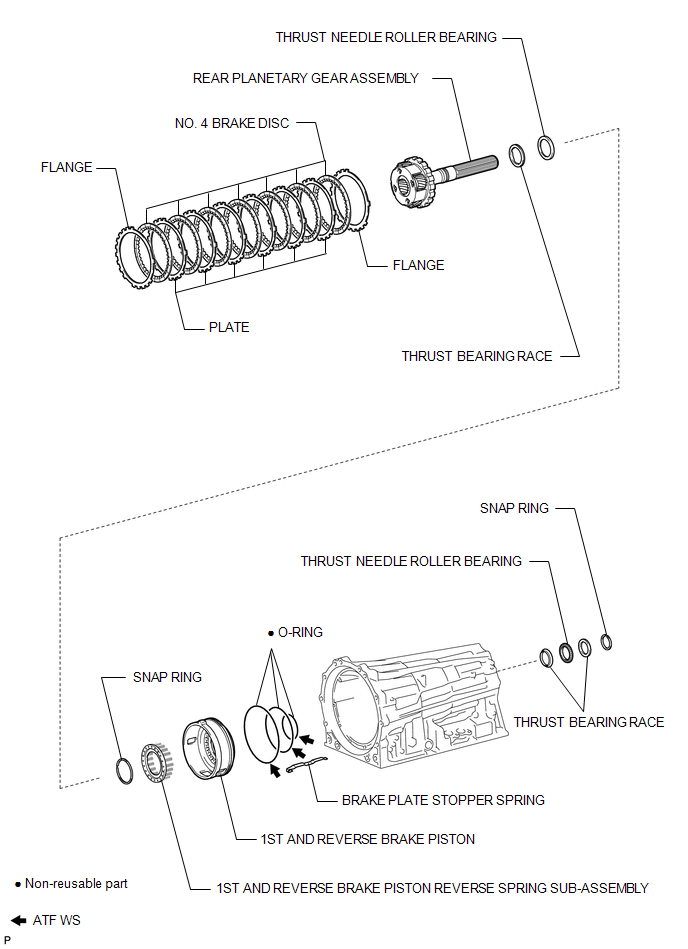

Fig 9: Automatic Transmission Unit Replacement Components (9 Of 10)

Fig 10: Automatic Transmission Unit Replacement Components (10 Of 10)
