Installation [08/2015 - ]: Procedure
- INSTALL TORQUE CONVERTER ASSEMBLY

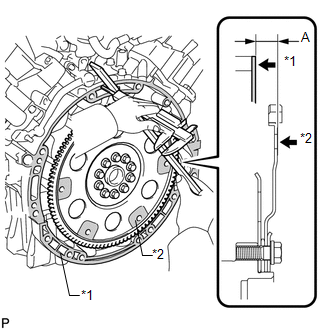

- Using a vernier caliper and straightedge, measure dimension A between the transmission fitting surface of the engine *1 and the converter fitting surface of the drive plate *2. (#)

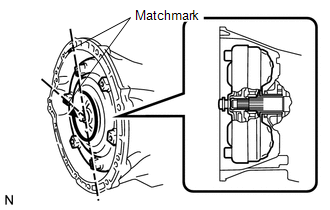

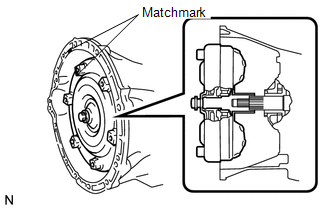

- Aligning the matchmarks on the transmission case and torque converter, and then engage the splines of the input shaft and turbine runner.
- Engage the splines of the stator shaft and stator while turning the torque converter.
HINT:
Turn the torque converter approximately 180°.

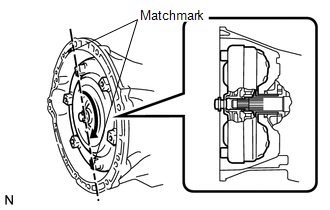

- Turn the torque converter and align the matchmarks on the torque converter and transmission case to engage the key of the oil pump drive gear into the slot on the torque converter.NOTE:
Do not push on the torque converter when aligning the matchmarks.

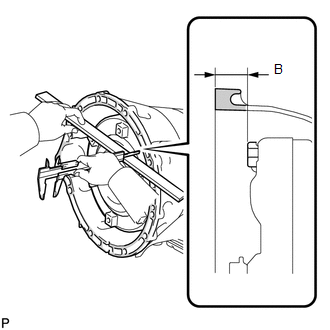

- Using a vernier caliper and a straightedge, measure dimension B shown in the illustration and check that B is greater than A measured in the first step.
Standard distance
B = A + 1 mm (0.0394 in.) or more

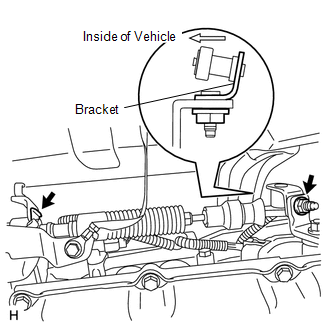

- INSTALL TRANSMISSION CONTROL CABLE BRACKET
- INSTALL CONNECTOR CLAMP BRACKET
- Install the front left bank oxygen sensor connector clamp bracket with the bolt.
Torque: 8.0 N.m (82 kgf/cm, 71 in.*lbf)
- Install the rear left bank oxygen sensor connector clamp bracket with the bolt.
Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)
- Install the front right bank oxygen sensor connector clamp bracket with the bolt.
Torque: 8.0 N.m (82 kgf/cm, 71 in.*lbf)
- Install the front left bank oxygen sensor connector clamp bracket with the bolt.
- INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
- Apply clutch spline grease to the surface of the torque converter centerpiece that contacts the crankshaft.
Clutch spline grease
Toyota Genuine Clutch Spline Grease or equivalent
Maximum grease amount
Approximately 1 g (0.0353 oz.) Centerpiece

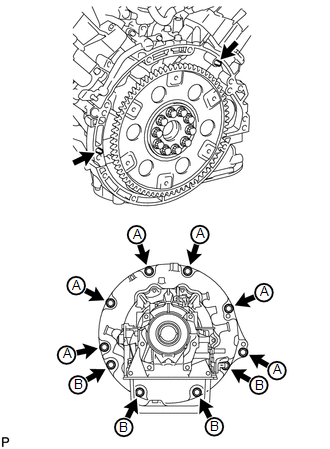

- Confirm that the 2 knock pins are on the transaxle contact surface of the engine block before transaxle installation.
- Install the transmission with the 10 bolts.
for 17 mm head bolt A
Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)
for 14 mm head bolt B
Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)
- Apply clutch spline grease to the surface of the torque converter centerpiece that contacts the crankshaft.
- CONNECT BREATHER PLUG HOSE

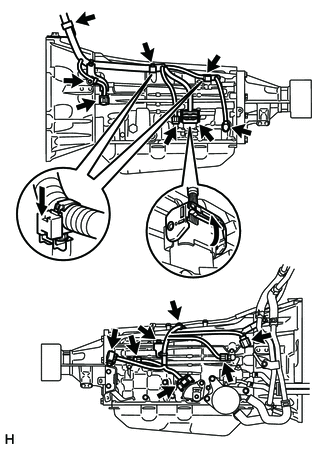

- CONNECT WIRE HARNESS AND CONNECTOR
- Connect the park/neutral start switch connector, 2 transmission wire connectors and 2 speed sensor connectors.
HINT:
Push up the lever until the claw of the transmission wire connector makes a connection sound.
- Connect the harness clamp with the bolt.
Torque: 8.2 N.m (84 kgf/cm, 73 in.*lbf)
- Connect the 3 connector clamps and 4 harness clamps.
- Tilt up the automatic transmission.
- Connect the ground cable with the bolt.
Torque: 5.5 N.m (56 kgf/cm, 49 in.*lbf)
- Connect the park/neutral start switch connector, 2 transmission wire connectors and 2 speed sensor connectors.
- INSTALL REAR NO. 1 ENGINE MOUNTING INSULATOR
- INSTALL NO. 3 FRAME CROSSMEMBER SUB-ASSEMBLY
- INSTALL DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT
- INSTALL STARTER ASSEMBLY
- Install the starter assembly. Refer to: INSTALLATION [08/2015 - ] ).
- CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
- CONNECT WATER BY-PASS PIPE ASSEMBLY
See step 2
- INSTALL FRONT NO. 3 EXHAUST PIPE ASSEMBLY
Refer to:
- INSTALL FRONT EXHAUST PIPE ASSEMBLY
Refer to:
- INSTALL PROPELLER SHAFT ASSEMBLY
- Install the propeller shaft assembly. Refer to: INSTALLATION [08/2015 - ] ).
- ADD ENGINE COOLANT
Refer to: PROCEDURE - Step 3
- ADD AUTOMATIC TRANSMISSION FLUID
Fluid type
Toyota Genuine ATF WS
HINT:
Fill the transmission with the amount of fluid listed in the table below.
Standard Capacity
Repair Fill amount Transmission pan and drain plug removal 2.1 liters (2.2 US qts, 1.9 Imp. qts) Transmission valve body removal 4.7 liters (5.0 US qts, 4.1 Imp. qts) Torque converter removal 6.1 liters (6.4 US qts, 5.4 Imp. qts) - ADJUST AUTOMATIC TRANSMISSION FLUID
- Adjust automatic transmission fluid. Refer to:
ADJUSTMENT [08/2015 - 08/2017]
- Adjust automatic transmission fluid. Refer to:
- INSPECT FOR AUTOMATIC TRANSMISSION FLUID LEAK
- INSPECT FOR ENGINE COOLANT LEAK
Refer to: PROCEDURE - Step 1
- INSPECT FOR EXHAUST GAS LEAK
- INSPECT SHIFT LEVER POSITION
See step 1[08/2015 - 08/2019]
See step 1[08/2019 - ]
- ADJUST SHIFT LEVER POSITION
See step 2
- RESET MEMORY
- Perform the Reset Memory procedures (A/T initialization). Refer to:
INITIALIZATION [08/2015 - 08/2017]
- Perform the Reset Memory procedures (A/T initialization). Refer to:
