System Diagram [08/2015 - 08/2017]

WARNING: This page is about a different variant/trim than selected.

The configuration of the electronic control system in the AB60E automatic transmission is as shown in the following chart.

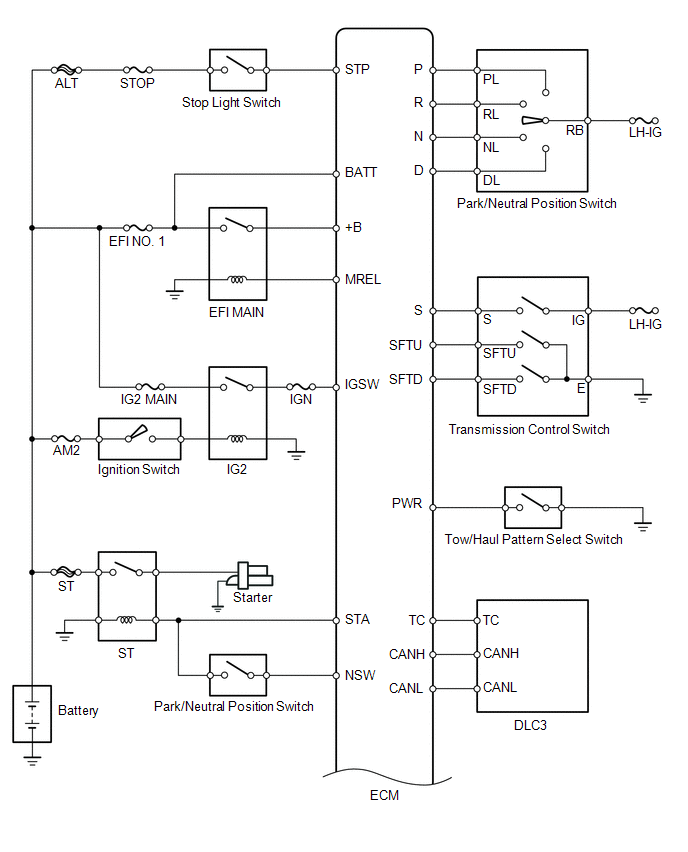

GTY558930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

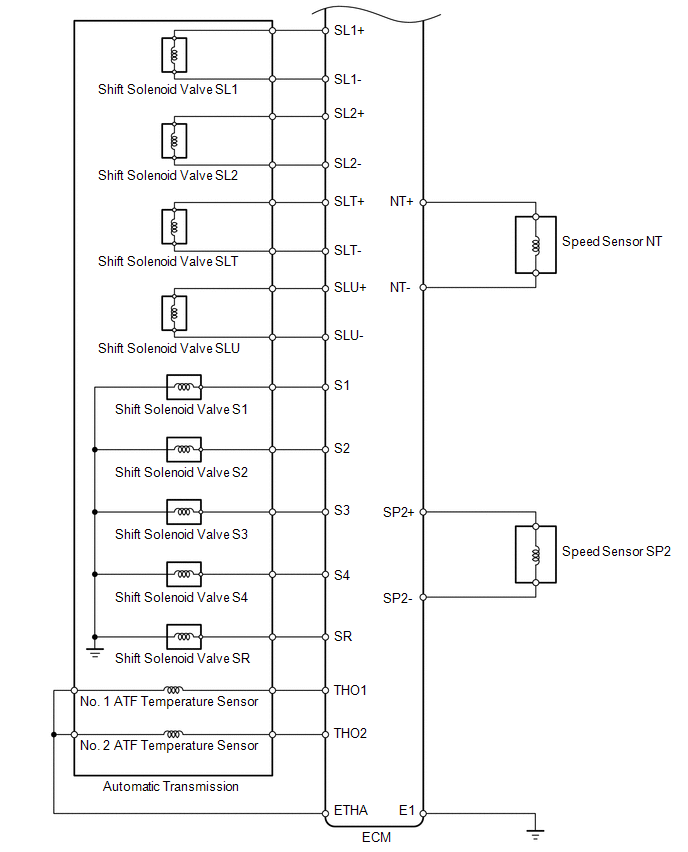

GTY565722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
