Parts Location [08/2015 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

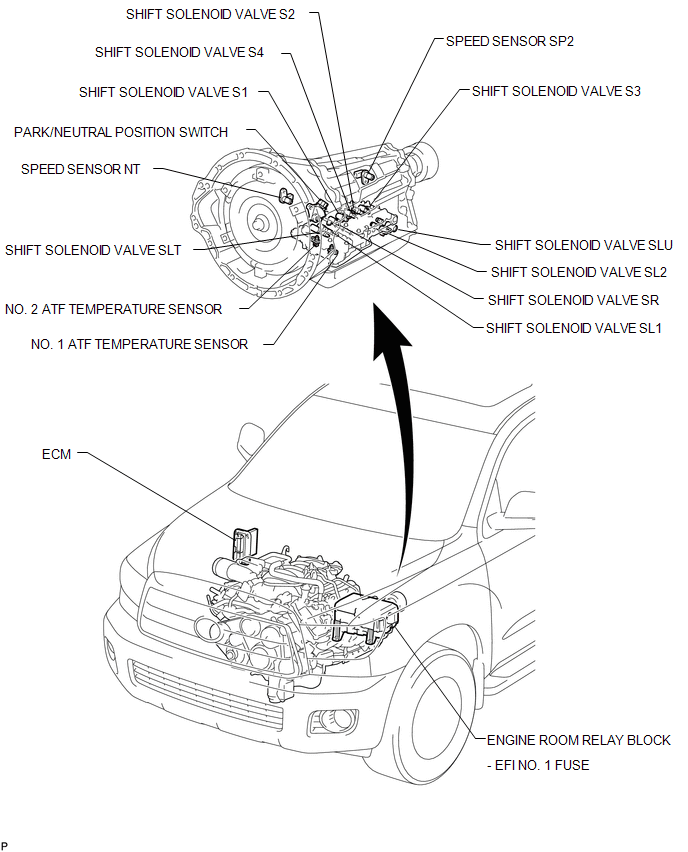

GTY219283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

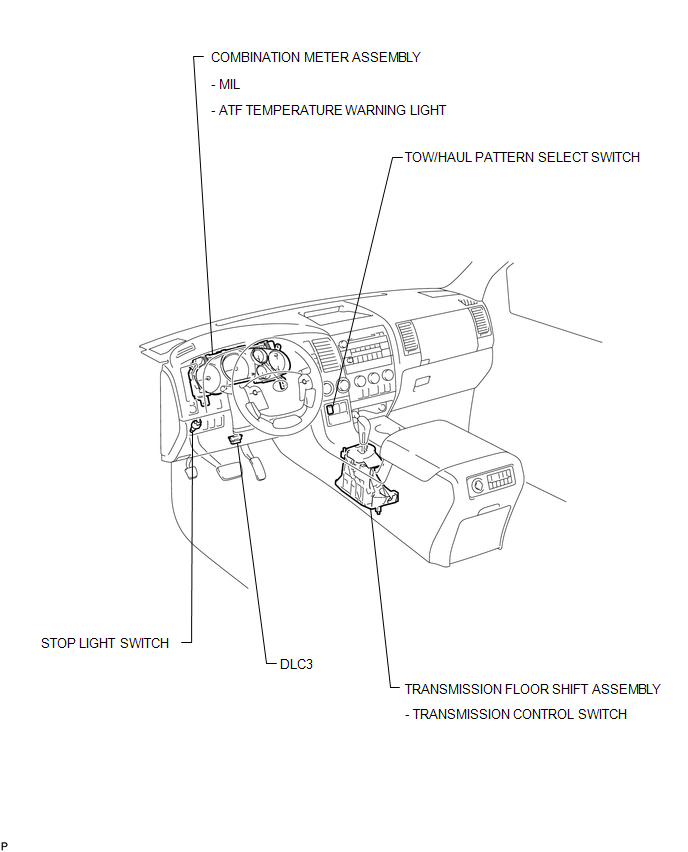

GTY569448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
