Disassembly [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE OIL PUMP COVER

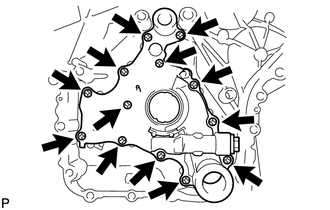

    1. Remove the 13 bolts, oil pump cover, drive rotor and driven rotor.
      GTY611286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE OIL PUMP RELIEF VALVE
    1. Remove the relief valve plug.
      GTY611590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the valve spring and oil pump relief valve.
