Components [08/2015 - 08/2018]

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

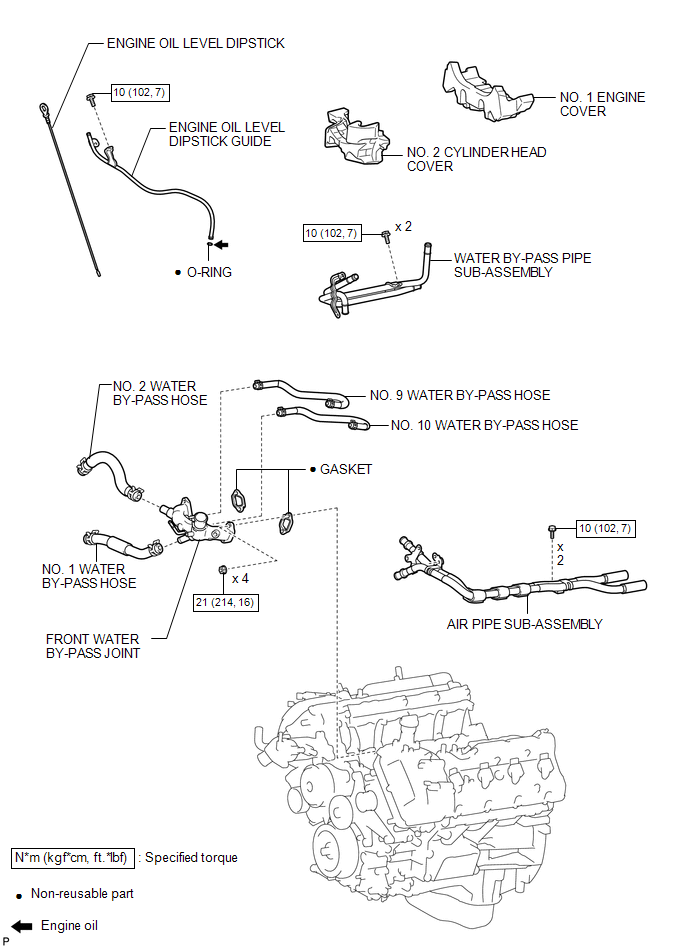

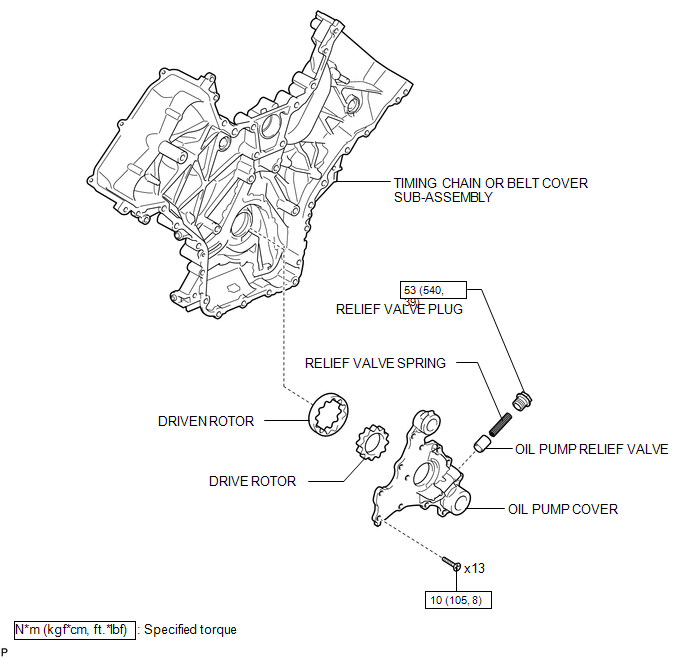

Fig 1: Oil Pump Replacement Components With Torque Specifications [08/2015 - 08/2018] (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

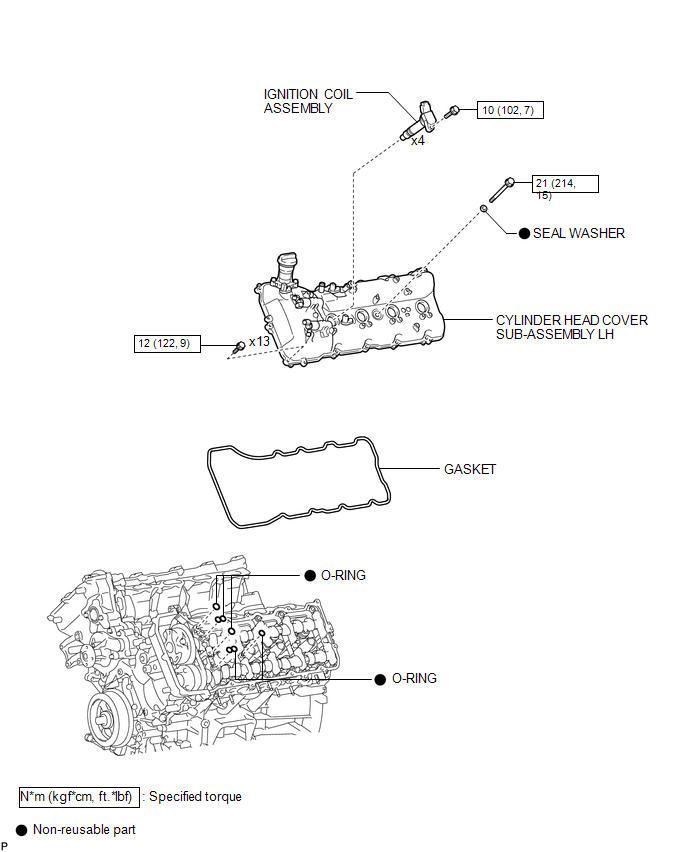

Fig 2: Oil Pump Replacement Components With Torque Specifications [08/2015 - 08/2018] (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

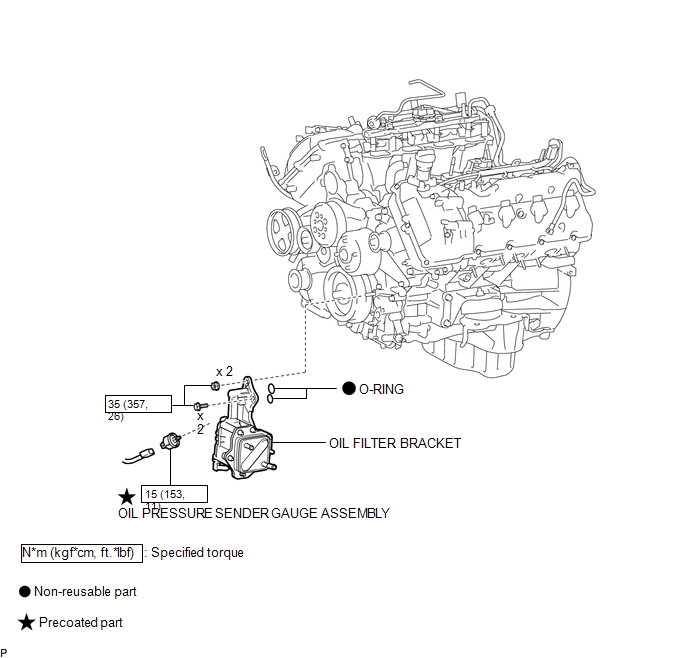

Fig 3: Oil Pump Replacement Components With Torque Specifications [08/2015 - 08/2018] (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

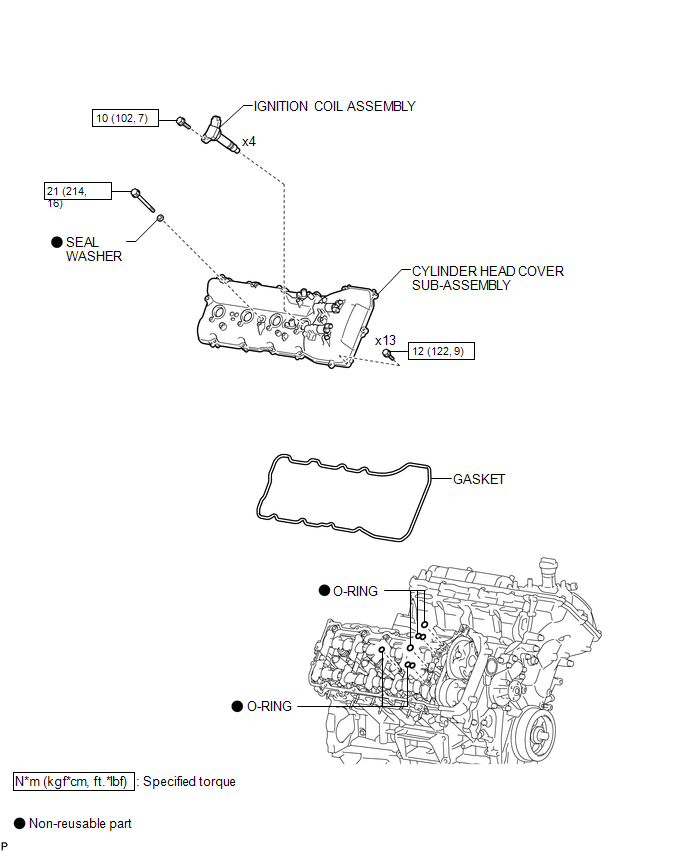

Fig 4: Oil Pump Replacement Components With Torque Specifications [08/2015 - 08/2018] (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

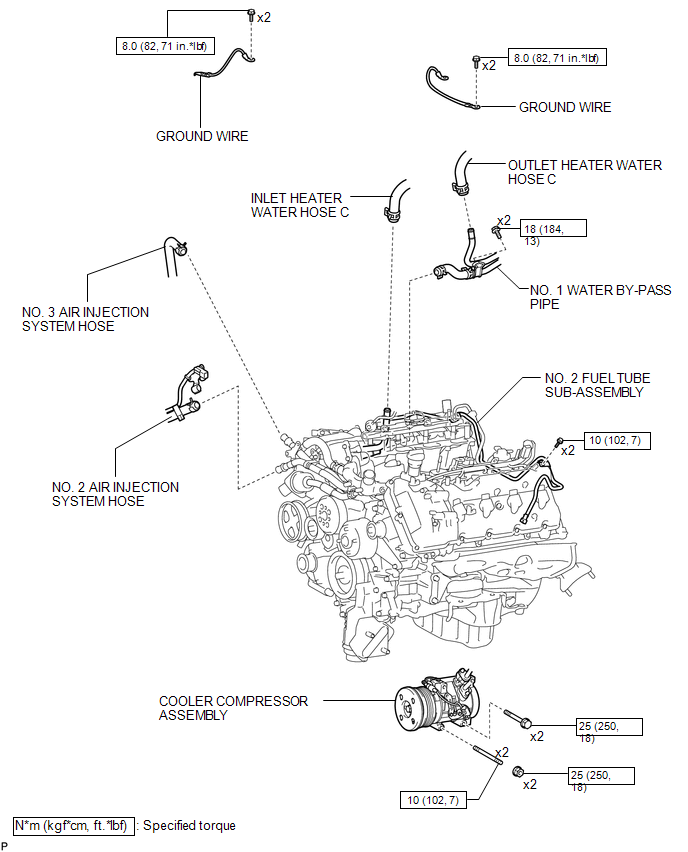

Fig 5: Oil Pump Replacement Components With Torque Specifications [08/2015 - 08/2018] (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

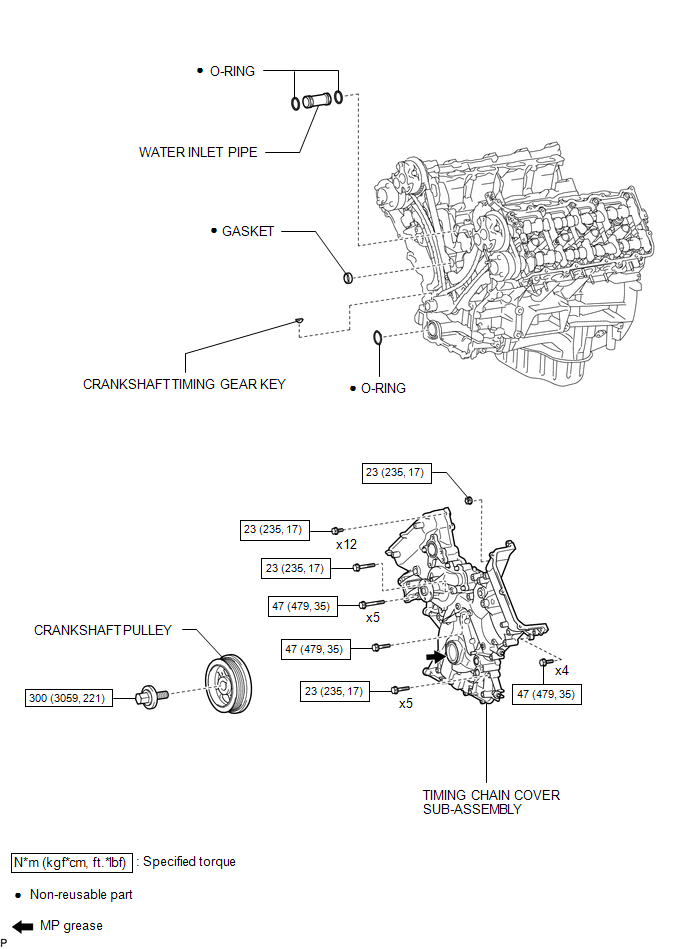

Fig 6: Oil Pump Replacement Components With Torque Specifications [08/2015 - 08/2018] (6 Of 9)

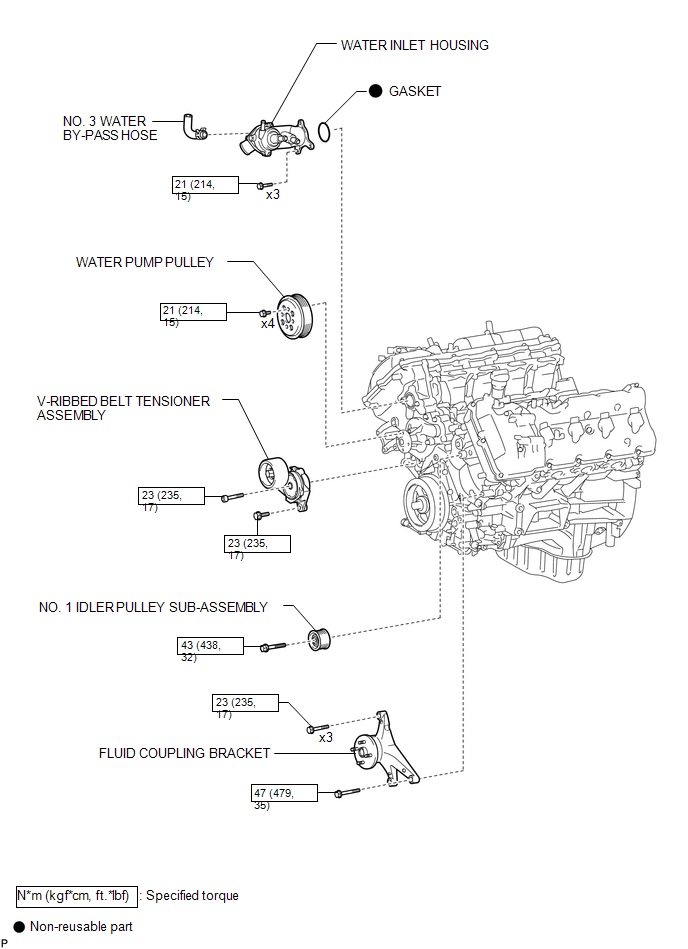

Fig 7: Oil Pump Replacement Components With Torque Specifications [08/2015 - 08/2018] (7 Of 9)

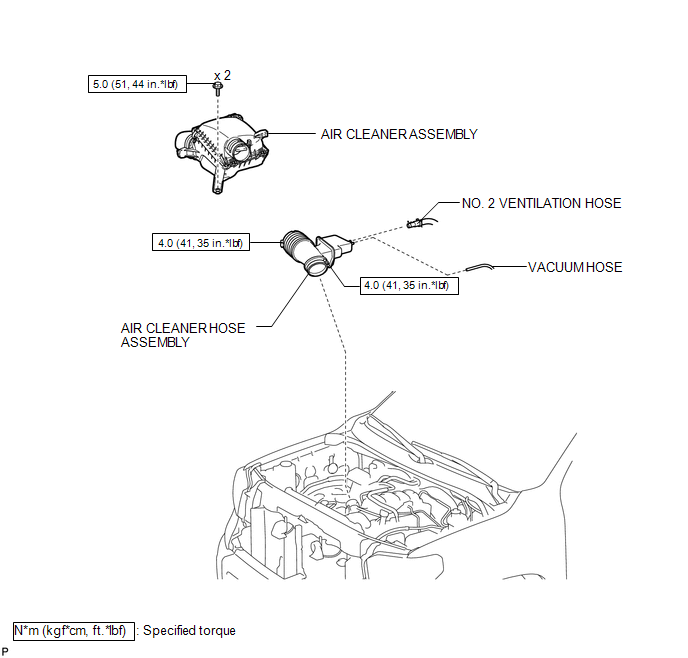

Fig 8: Oil Pump Replacement Components With Torque Specifications [08/2015 - 08/2018] (8 Of 9)

Fig 9: Oil Pump Replacement Components With Torque Specifications [08/2015 - 08/2018] (9 Of 9)
