Inspection [08/2015 - 08/2018]: Procedure
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT THROTTLE BODY ASSEMBLY
- Check the throttle valve.
- Check that the throttle valve opens and closes smoothly.
- Check that there is no sludge accumulating around the throttle body.

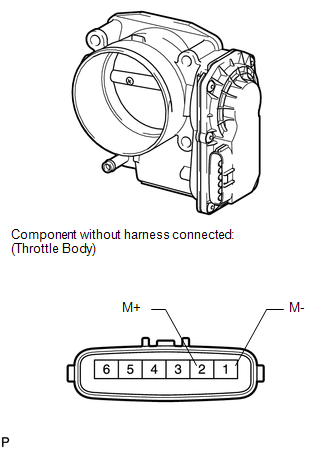

- Check the throttle control motor.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| 1 (M-) - 2 (M+) |
20°C (68°F) |
0.3 to 100 Ω |
If the result is not as specified, replace the throttle body.
