Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE MASS AIR FLOW METER

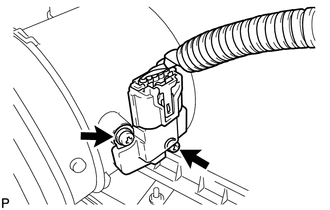

    GTY588674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the MAF connector.
    2. Remove the 2 screws and MAF meter.
