Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [08/2015 - 08/2018] )

  2. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 9

  3. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 11

  4. REMOVE KNOCK SENSOR

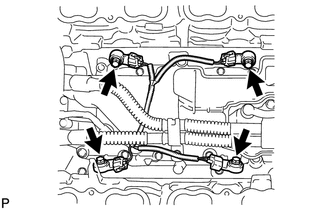

    1. Disconnect the 4 knock sensor connectors.
      GTY147693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 knock sensors.
