Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

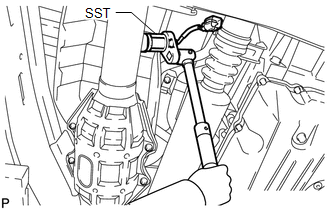

  1. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
    GTY558360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the heated oxygen sensor connector.
    2. Using SST, remove the heated oxygen sensor.
      • SST: 09224-00010

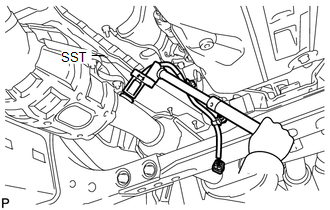

  2. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
    GTY582425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the heated oxygen sensor connector and 2 clamps.
    2. Using SST, remove the heated oxygen sensor.
      • SST: 09224-00010
