Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

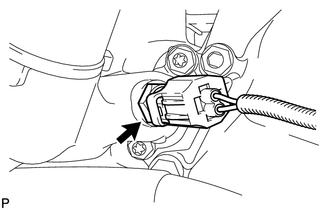

INSTALL ENGINE COOLANT TEMPERATURE SENSOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install a new gasket to the sensor.
2. Using a 19 mm ball joint lock nut wrench, install the sensor.
  without 19 mm ball joint lock nut wrench

  Torque: 20 N.m (200 kgf/cm, 14 ft.lbf)

  with 19 mm ball joint lock nut wrench

  Torque: 10 N.m (104 kgf/cm, 8 ft.lbf)

  HINT:

  Perform "Inspection After Repairs" after replacing the engine coolant temperature sensor (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018] ).
3. Connect the sensor connector.
ADD ENGINE COOLANT
Refer to PROCEDURE - Step 3
INSPECT FOR COOLANT LEAK
Refer to PROCEDURE - Step 1
INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
