Inspection [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

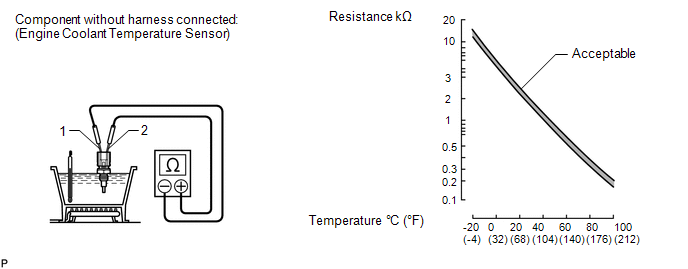

    GTY572317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Partially immerse the sensor in water and warm up the water.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Approx. 20°C (68°F) 2.32 k to 2.59 kΩ
      1 - 2 Approx. 80°C (176°F) 0.310 k to 0.326 kΩ

      If the result is not as specified, replace the sensor.

      NOTE:

      When checking the sensor in water, keep the terminals dry. After the check, wipe the sensor dry.

      HINT:

      If the result is as specified, do not replace the engine coolant temperature sensor.
