Removal [08/2015 - 08/2018]: Procedure
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

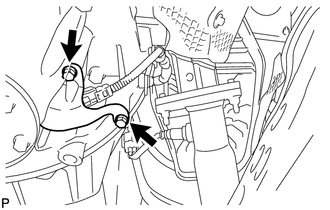

- REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR
- Remove the 2 bolts and sensor protector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

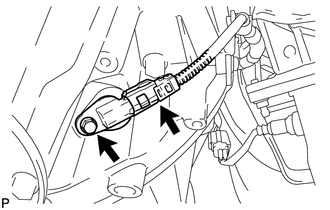

- REMOVE CRANKSHAFT POSITION SENSOR
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the sensor connector.
- Remove the bolt and sensor.
