Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

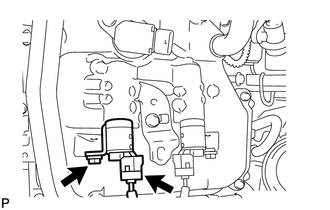

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install a new O-ring to the oil control valve.
2. Apply a light coat of engine oil to the O-ring.
3. Install the oil control valve with the bolt.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
4. Connect the oil control valve connector.

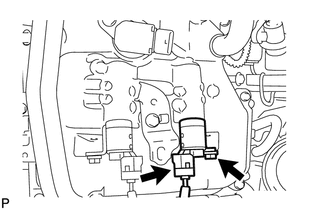

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install a new O-ring to the oil control valve.
2. Apply a light coat of engine oil to the O-ring.
3. Install the oil control valve with the bolt.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
4. Connect the oil control valve connector.

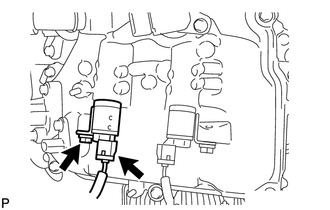

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install a new O-ring to the oil control valve.
2. Apply a light coat of engine oil to the O-ring.
3. Install the oil control valve with the bolt.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
4. Connect the oil control valve connector.

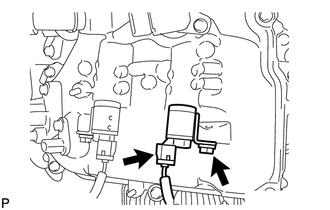

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install a new O-ring to the oil control valve.
2. Apply a light coat of engine oil to the O-ring.
3. Install the oil control valve with the bolt.
  Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
4. Connect the oil control valve connector.
INSTALL AIR CLEANER HOSE ASSEMBLY
Refer to PROCEDURE - Step 13
INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
