Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
1. Remove the automatic transmission assembly. Refer to REMOVAL [08/2015 - ] .
REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
See step 24

REMOVE ENGINE REAR OIL SEAL

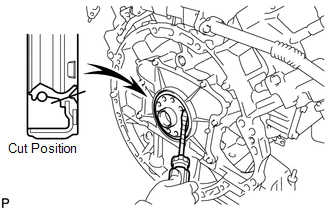

Using a knife, cut off the lip of the oil seal.

Using a screwdriver, pry out the oil seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Tape the screwdriver tip before use.

NOTE:

Do not damage the surface of the oil seal press fit hole and crankshaft.
