Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ENGINE REAR OIL SEAL

Apply MP grease to the lip of a new oil seal.

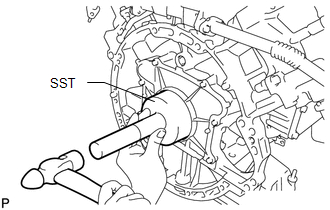

Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09223-56010

NOTE:

Keep the lip free from foreign matter.
Do not tap on the oil seal at an angle.

INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
See step 5
INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
1. Install the automatic transmission assembly. Refer to INSTALLATION [08/2015 - ] .
