Components [08/2015 - 08/2018]
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

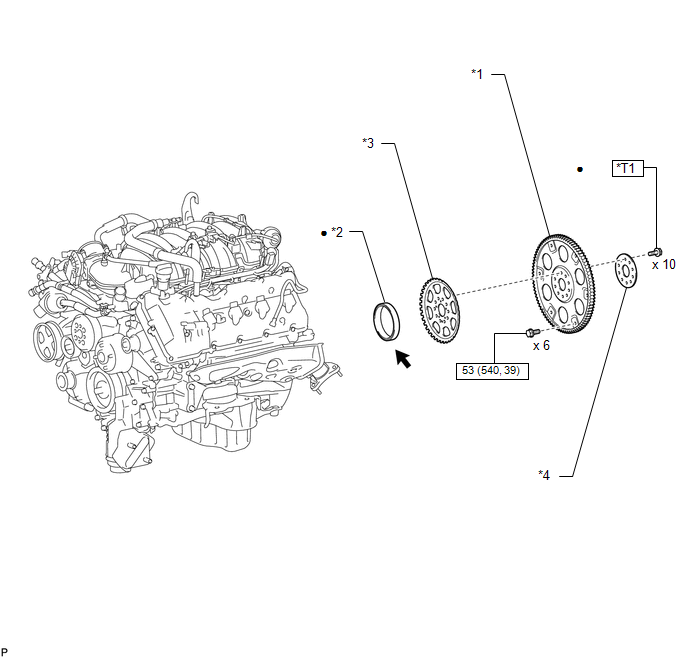

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications [08/2015 - 08/2018]
| Callout | Description | Callout | Description |
| *1 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | *2 | ENGINE REAR OIL SEAL |
| *3 | CRANKSHAFT ANGLE SENSOR ROTOR | *4 | REAR DRIVE PLATE SPACER |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | MP grease | |
| *9 | 1st: 30 N.m (306 kgf/cm, 22 ft.lbf) 2nd: Turn 90° |
- | - |
