Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR ASSEMBLY
    1. Remove the radiator assembly. Refer to REMOVAL [08/2015 - 08/2018] .
  2. SEPARATE FRONT STABILIZER BAR

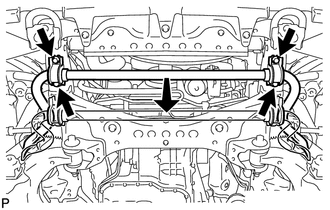

    1. Remove the 4 bolts, 2 stabilizer brackets and 2 stabilizer bushes, separate the stabilizer bar.
      GTY609873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CRANKSHAFT PULLEY

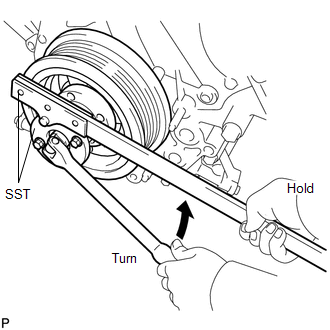

    1. Using SST, loosen the crankshaft pulley set bolt.
      GTY593206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-70011
      • SST: 09330-00021
    2. Partially install the pulley set bolt to the crankshaft until 2 or 3 threads are engaged.
    3. Using the pulley set bolt and SST, remove the crankshaft pulley.
      GTY584767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-50013
        1. 09951-05010
        2. 09952-05010
        3. 09953-05010
        4. 09954-05021
  4. REMOVE CRANKSHAFT TIMING GEAR KEY
    1. Remove the crankshaft timing gear key from the crankshaft.
      GTY587387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

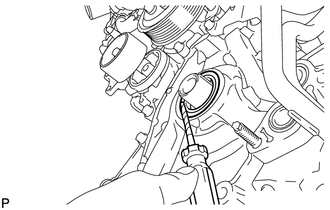

    1. Using a screwdriver, pry out the oil seal.
      GTY136660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

      NOTE:

      Do not damage the surface of the oil seal press fit hole and crankshaft.
