Installation [08/2015 - 08/2018]: Procedure
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
- Apply MP grease to the lip of a new oil seal.

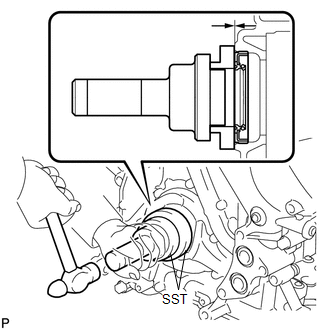

- Using SST and a hammer, tap in the oil seal to a depth between 0 to 1.0 mm (0 to 0.0394 in.) from the timing chain cover edge.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- SST: 09223-22010
- SST: 09506-35010
NOTE:
- Keep the lip free from foreign matter.
- Do not tap the oil seal at an angle.
- INSTALL CRANKSHAFT TIMING GEAR KEY
- Install the crankshaft timing gear key.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSTALL CRANKSHAFT PULLEY
- Align the pulley set key with the key groove of the pulley, and slide on the pulley.
- Using SST, install the pulley set bolt.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- SST: 09213-70011
- SST: 09330-00021
Torque: 300 N.m (3059 kgf/cm, 221 ft.lbf)
- INSTALL FRONT STABILIZER BAR

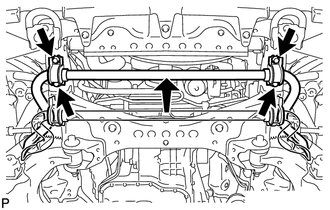

- Install the stabilizer bar and 2 stabilizer bushes and 2 stabilizer brackets with the 4 bolts.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Torque: 69 N.m (704 kgf/cm, 51 ft.lbf)
- INSTALL RADIATOR ASSEMBLY
- Install the radiator assembly. Refer to INSTALLATION [08/2015 - 08/2018]
.
- INSPECT FOR OIL LEAK
Refer to PROCEDURE - Step 10
