On-Vehicle Inspection [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT ENGINE COOLANT

    Refer to ON-VEHICLE INSPECTION [08/2015 - 08/2018] )

  2. INSPECT ENGINE OIL

    Refer to ON-VEHICLE INSPECTION [08/2015 - 08/2018] )

  3. INSPECT BATTERY

    Refer to PROCEDURE - Step 1

  4. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
    1. Visually check that the air filter is not excessively damaged or oily.

      If necessary, replace the air filter.

  5. INSPECT SPARK PLUG

    Refer to ON-VEHICLE INSPECTION [08/2015 - 08/2018] )

  6. INSPECT FAN & GENERATOR V BELT

    See step  1

  7. INSPECT V-RIBBED BELT TENSIONER ASSEMBLY

    See step  2

  8. INSPECT IGNITION TIMING
    1. Warm up and stop the engine.
      1. Allow the engine to warm up to a normal operating temperature.
    2. When using the Techstream:
      1. Connect the Techstream to the DLC3.
      2. Start the engine and idle it.
      3. Turn the Techstream main switch on.
      4. Enter the following menus: Select: Powertrain / Engine and ECT / Data List / IGN Advance.

        HINT:

        Refer to the Techstream Operator Manual for further details.

        Standard ignition timing

        8 to 12° BTDC @ idle (transmission in neutral and A/C switch off)

      5. Disconnect the Techstream from the DLC3.
    3. When not using the Techstream:

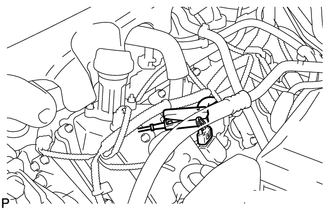

      GTY128966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the tester probe of a timing light to the wire of the ignition coil connector for the No. 1 cylinder.
        NOTE:

        Use a timing light that detects primary signals.

      2. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
        GTY540361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09843-18040
        NOTE:
        • Confirm the terminal numbers before connecting them. Connecting the wrong terminals can damage the engine.
        • Switch off all accessories and the A/C before connecting the terminals.
      3. Using the timing light, check the ignition timing.

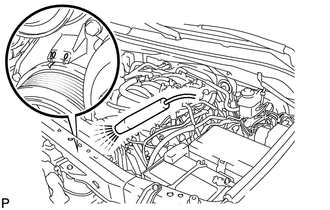

        GTY218592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard ignition timing

        8 to 12° BTDC @ idle (transmission in neutral and A/C switch off)

      4. Remove SST from the DLC3.
      5. Check the ignition timing.

        Standard ignition timing

        7 to 24° BTDC @ idle (transmission in neutral and A/C switch off)

      6. Disconnect the timing light from the engine.
  9. INSPECT ENGINE IDLE SPEED
    1. Warm up and stop the engine.
      1. Allow the engine to warm up to a normal operating temperature.
    2. When using the Techstream:
      1. Connect the Techstream to the DLC3.
        NOTE:

        Switch off all accessories and the A/C before connecting the Techstream.

      2. Race the engine at 2500 RPM for approximately 90 seconds.
      3. Turn the Techstream main switch on.
      4. Enter the following menus: Select: Powertrain / Engine and ECT / Data List / Engine Speed.

        Standard idle speed

        650 to 750 RPM (transmission in neutral and A/C switch off)

        HINT:

        Refer to the Techstream Operator Manual for further details.

        If the idle speed is not as specified, check the air intake system.

      5. Disconnect the Techstream from the DLC3.
    3. When not using the Techstream:
      GTY148647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, connect the tachometer probe to terminal 9 (TAC) of the DLC3.
        • SST: 09843-18030
        NOTE:
        • Confirm the terminal number before connecting the probe. Connecting the probe to the wrong terminal can damage the engine.
        • Switch off all accessories and the A/C before connecting the probe.
      2. Race the engine at 2500 RPM for approximately 90 seconds.
      3. Check the idle speed.

        Standard idle speed

        650 to 750 RPM (transmission in neutral and A/C switch off)

        If the idle speed is not as specified, check the air intake system.

      4. Disconnect the tachometer from the DLC3.
  10. INSPECT COMPRESSION
    1. Remove the 8 spark plugs. Refer to REMOVAL [08/2015 - 08/2018] .
    2. Check the cylinder compression pressure.

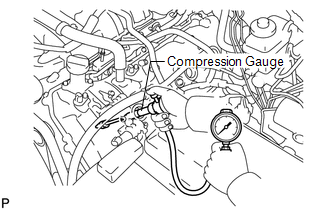

      GTY538877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Check each cylinder compression pressure in the same way.

      1. Insert a compression gauge into the spark plug hole.
      2. Fully open the throttle.
      3. While cranking the engine, measure the compression pressure.

        Standard compression pressure

        1300 kPa (13.3 kgf/cm2 , 189 psi) or more

        Minimum pressure

        1000 kPa (10.2 kgf/cm2 , 145 psi)

        Difference between each cylinder

        100 kPa (1.0 kgf/cm2 , 15 psi) or less

        NOTE:
        • Always use a fully charged battery to obtain an engine speed of 250 RPM or more.
        • This measurement must be done as quickly as possible.
      4. If the cylinder compression is low in one or more cylinders, pour a small amount of engine oil into the cylinder with low compression through its spark plug hole. Then inspect the cylinder compression pressure again.

        HINT:

        • If adding oil helps boost the compression, it is likely that the piston rings and/or cylinder bore are worn or damaged.
        • If pressure stays low, a valve may be stuck or seated improperly, or there may be leakage in the gasket.
  11. INSPECT CO/HC

    HINT:

    This check is used only to determine whether or not the idle CO/ HC complies with regulations.

    1. Start the engine.
    2. Keep the engine speed at 2500 RPM for approximately 180 seconds.
    3. Insert the CO/HC meter testing probe at least 40 cm (1.31 ft.) into the tailpipe during idling.

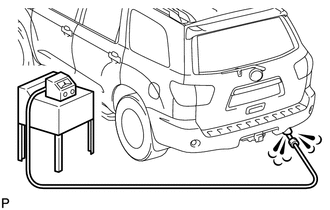

      GTY216429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Immediately check CO/HC concentration at idle and/or 2500 RPM.

      HINT:

      When performing the 2 mode (2500 RPM and idle) test, follow the measurement order prescribed by the applicable local regulations.

    5. If the CO/HC concentration does not comply with the regulations, troubleshoot in the order given below.
      1. Check the A/F sensor and heated oxygen sensor operation.
      2. See the table below for possible causes, and then inspect and correct the applicable causes if necessary.
        CO HC Symptom Cause
        Normal High Rough idle
        1. Faulty ignitions:
          • Incorrect timing
          • Plugs (contaminated, shorted or gaps are defective)
        2. Incorrect valve clearance
        3. Leaky intake and exhaust valves
        4. Leaky cylinder
        Low High Rough idle
        (Fluctuating HC reading)
        1. Vacuum leaks:
          • PCV hose
          • Intake manifold
          • Throttle body
          • Brake booster line
        2. Lean mixture causing misfire
        High High Rough idle
        (Black smoke from exhaust)
        1. Restricted air filter
        2. Faulty SFI system:
          • Faulty pressure regulator
          • Defective ECT sensor
          • Faulty ECM
          • Faulty injectors
          • Faulty throttle position sensor
          • Faulty MAF meter
