Inspection [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT CYLINDER HEAD SET BOLT
    GTY186236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a vernier caliper, measure the diameter of the elongated thread at the measuring point.

      Standard diameter

      10.85 to 11.00 mm (0.427 to 0.433 in.)

      Minimum diameter

      10.6 mm (0.417 in.)

      If the diameter is less than the minimum, replace the cylinder head bolt.

      HINT:

      If a visual check reveals no excessively thin areas, check the center of the bolt (see illustration) and find the area that has the lowest diameter.

  2. INSPECT NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
    GTY131103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the roller by hand to check that it turns smoothly.

      If the roller does not turn smoothly, replace the valve rocker arm.

  3. INSPECT VALVE LASH ADJUSTER ASSEMBLY
    NOTE:
    • Keep the adjuster free from dirt and foreign objects.
    • Use only clean engine oil.

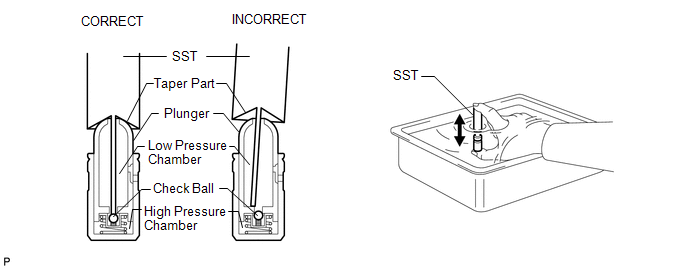

    GTY568417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Place the lash adjuster into a container full of new engine oil.
    2. Insert SST's tip into the lash adjuster's plunger and use the tip to press down on the check ball inside the plunger.
      • SST: 09276-75010
    3. Squeeze SST and the lash adjuster together to move the plunger up and down 5 to 6 times.
    4. Check the movement of the plunger and bleed air.

      OK

      Plunger moves up and down.

      NOTE:

      When bleeding high-pressure air from the compression chamber, make sure that the tip of SST is actually pressing the check ball as shown in the illustration. If the check ball is not pressed, air will not bleed.

    5. After bleeding the air, remove SST. Then try to quickly and firmly press the plunger with your fingers.

      OK

      Plunger can be pressed 3 times.

      If the plunger can still be compressed after pressing it 3 times, replace the lash adjuster with a new one.

  4. INSPECT CAMSHAFT SUB-ASSEMBLY
    GTY147453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Inspect the camshaft for runout.
      1. Place the camshaft on V-blocks.
      2. Using a dial indicator, measure the circle runout at the center journal.

        Maximum circle runout

        0.04 mm (0.00157 in.)

        If the circle runout is more than the maximum, replace the camshaft.

        HINT:

        Check the oil clearance after replacing the camshaft.

    2. Using a micrometer, measure the cam lobe height.
      GTY136090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Cam Lobe Height

      Item Specified Condition
      Intake 44.291 to 44.441 mm (1.744 to 1.750 in.)
      Exhaust 44.196 to 44.346 mm (1.740 to 1.746 in.)

      Minimum Cam Lobe Height

      Item Specified Condition
      Intake 44.241 mm (1.742 in.)
      Exhaust 44.146 mm (1.738 in.)

      If the cam lobe height is less than the minimum, replace the camshaft.

    3. GTY147454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a micrometer, measure the journal diameter.

      Standard Journal Diameter

      Item Specified Condition
      No. 1 journal 29.956 to 29.970 mm (1.1793 to 1.1799 in.)
      Other journal 25.959 to 25.975 mm (1.0220 to 1.0226 in.)

      If the journal diameter is not as specified, check the oil clearance.

  5. INSPECT CAMSHAFT TIMING GEAR ASSEMBLY

    See step  1

  6. INSPECT CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

    See step  2

  7. INSPECT CHAIN SUB-ASSEMBLY
    GTY138063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a spring scale, pull the chain with a force of 147 N (15 kgf, 33.1 lbf) as shown in the illustration.
    2. Using a vernier caliper, measure the length of 15 pins.

      Maximum chain elongation

      136.9 mm (5.39 in.)

      HINT:

      Perform the measurement at 3 random places.

      If the elongation is more than the maximum, replace the chain.

  8. INSPECT NO. 2 CHAIN SUB-ASSEMBLY
    GTY138063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a spring scale, pull the chain with a force of 147 N (15 kgf, 33.1 lbf) as shown in the illustration.
    2. Using a vernier caliper, measure the length of 15 pins.

      Maximum chain elongation

      137.6 mm (5.42 in.)

      HINT:

      Perform the measurement at 3 random places.

      If the elongation is more than the maximum, replace the chain.

  9. INSPECT CRANKSHAFT TIMING GEAR OR SPROCKET
    GTY103468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Wrap the chain around the sprocket.
    2. Using a vernier caliper, measure the sprocket diameter with the chain.

      Minimum sprocket diameter (w/ chain)

      61.4 mm (2.42 in.)

      HINT:

      The vernier caliper must contact the chain rollers for the measurement.

      If the diameter is less than the minimum, replace the chain and sprocket.

  10. INSPECT CRANKSHAFT TIMING SPROCKET LH
    GTY103468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Wrap the chain around the sprocket.
    2. Using a vernier caliper, measure the sprocket diameter with the chain.

      Minimum sprocket diameter (w/ chain)

      61.4 mm (2.42 in.)

      HINT:

      The vernier caliper must contact the chain rollers for the measurement.

      If the diameter is less than the minimum, replace the chain and sprocket.

  11. INSPECT NO. 1 CHAIN TENSIONER ASSEMBLY
    GTY147462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Move the stopper plate upward to release the lock. Push the plunger and check that it moves smoothly.

      If necessary, replace the chain tensioner.

  12. INSPECT NO. 2 CHAIN TENSIONER ASSEMBLY
    GTY550022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check that the plunger moves smoothly.
    2. Measure the worn depth of the chain tensioner.

      Maximum depth

      0.9 mm (0.0354 in.)

      If the depth is more than the maximum, replace the chain tensioner.

  13. INSPECT NO. 3 CHAIN TENSIONER ASSEMBLY
    GTY556832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check that the plunger moves smoothly.
    2. Measure the worn depth of the chain tensioner.

      Maximum depth

      0.9 mm (0.0354 in.)

      If the depth is more than the maximum, replace the chain tensioner.

  14. INSPECT CHAIN TENSIONER SLIPPER
    1. GTY605865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for LH:

      1. Measure the worn depth of the chain tensioner slipper.

        Maximum depth

        1.0 mm (0.0394 in.)

        If the depth is more than the maximum, replace the chain tensioner slipper.

    2. GTY105217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for RH:

      1. Measure the worn depth of the chain tensioner slipper.

        Maximum depth

        1.0 mm (0.0394 in.)

        If the depth is more than the maximum, replace the chain tensioner slipper.

  15. INSPECT NO. 1 CHAIN VIBRATION DAMPER
    1. GTY148648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for LH:

      1. Measure the worn depth of the chain vibration damper.

        Maximum depth

        1.0 mm (0.0394 in.)

        If the depth is more than the maximum, replace the chain vibration damper.

    2. GTY139381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for RH:

      1. Measure the worn depth of the chain vibration damper.

        Maximum depth

        1.0 mm (0.0394 in.)

        If the depth is more than the maximum, replace the chain vibration damper.

  16. INSPECT EXHAUST MANIFOLD SUB-ASSEMBLY LH
    GTY147731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a precision straightedge and feeler gauge, measure the warpage of the contact surface of the cylinder head.

      Maximum warpage

      0.7 mm (0.0276 in.)

      If the warpage is more than the maximum, replace the exhaust manifold.

  17. INSPECT EXHAUST MANIFOLD SUB-ASSEMBLY RH
    GTY131150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a precision straightedge and feeler gauge, measure the warpage of the contact surface of the cylinder head.

      Maximum warpage

      0.7 mm (0.0276 in.)

      If the warpage is more than the maximum, replace the exhaust manifold.
