Components [08/2015 - 08/2018]

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

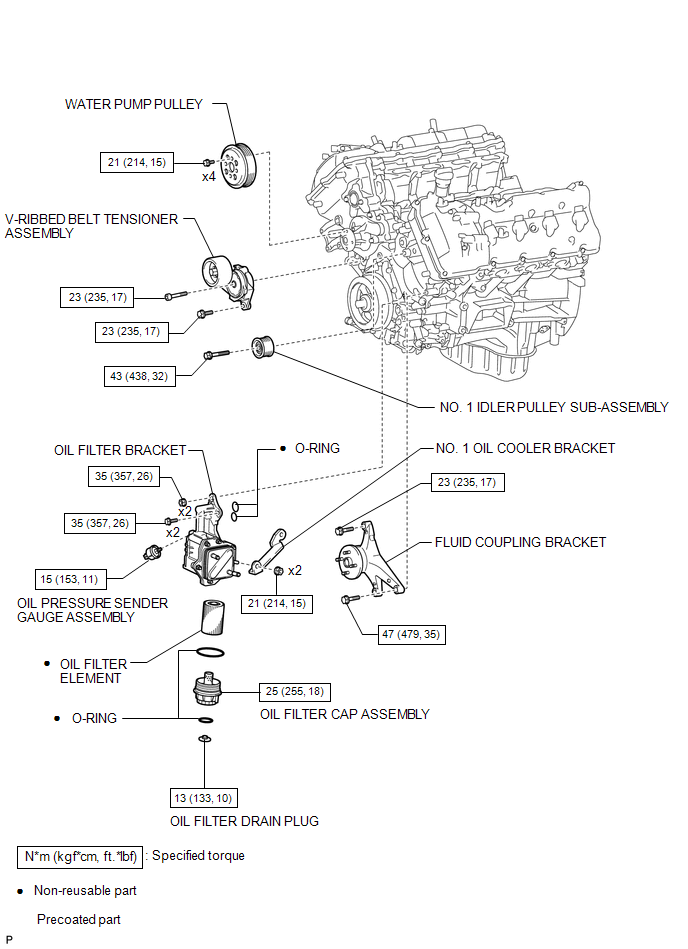

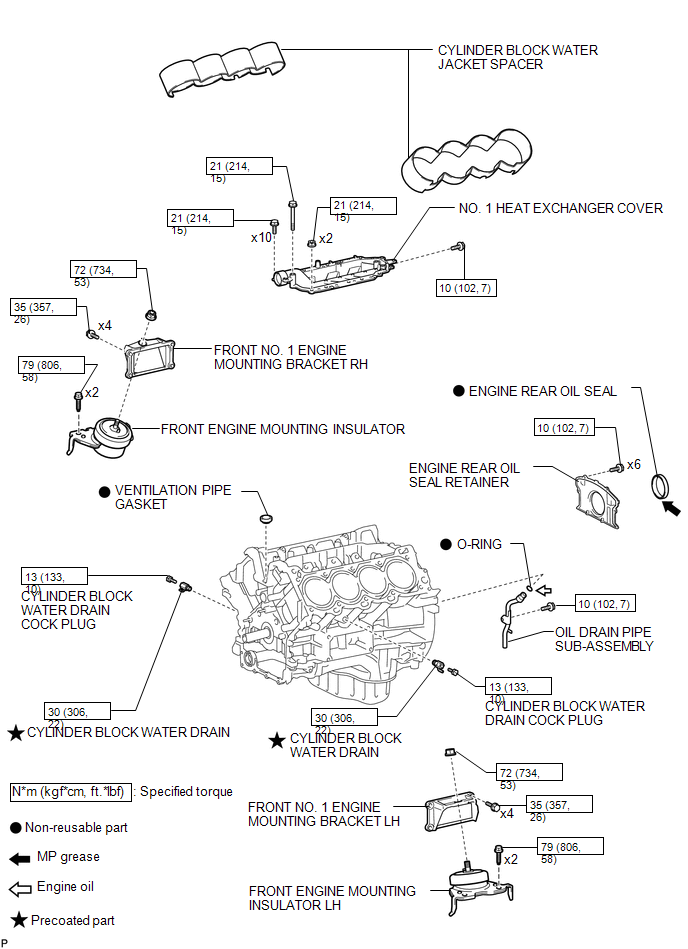

Fig 1: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

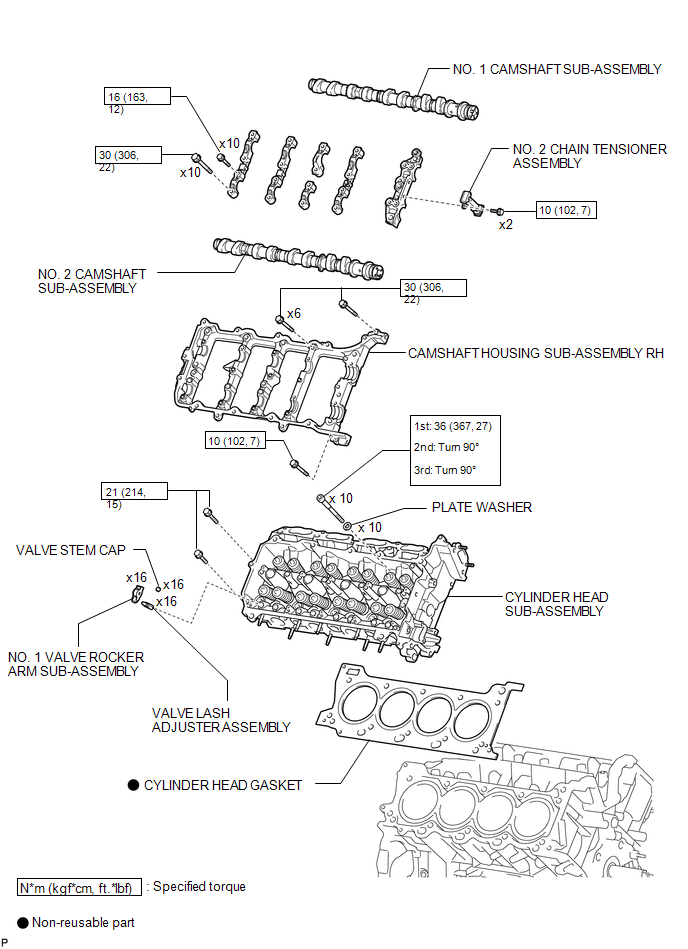

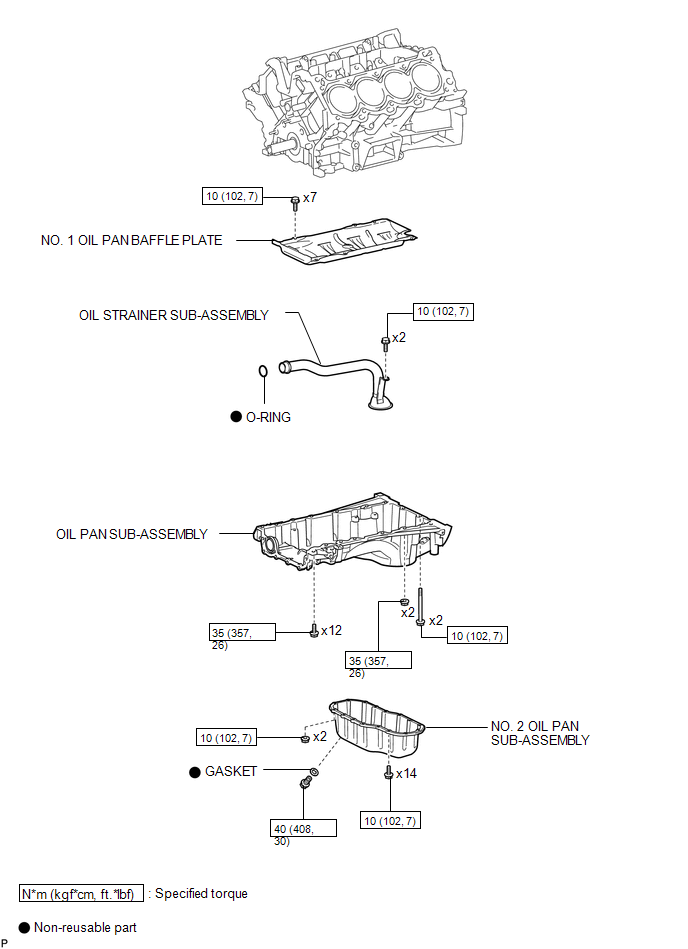

Fig 2: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

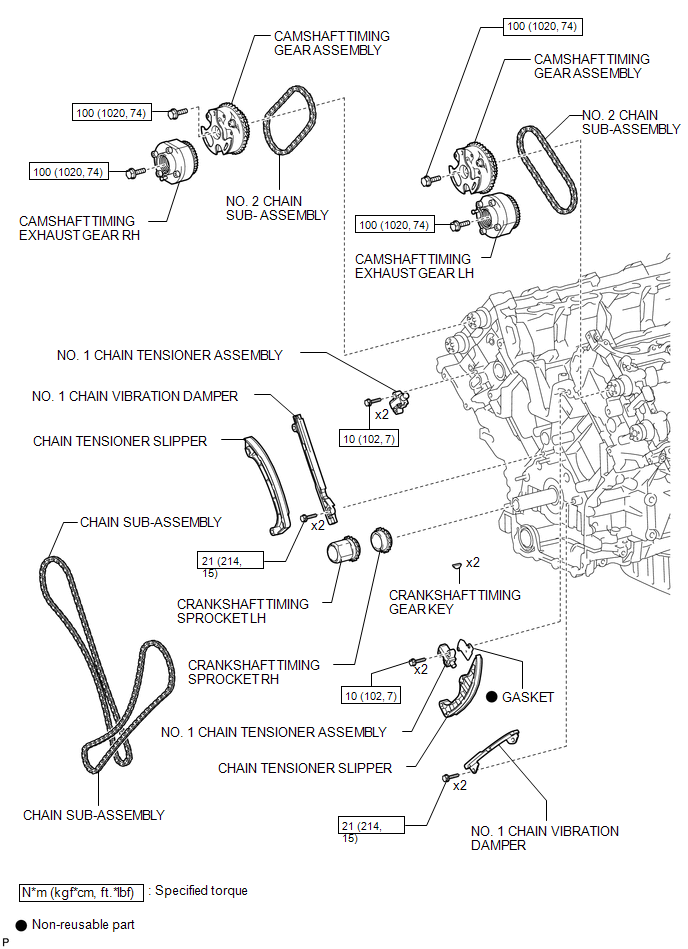

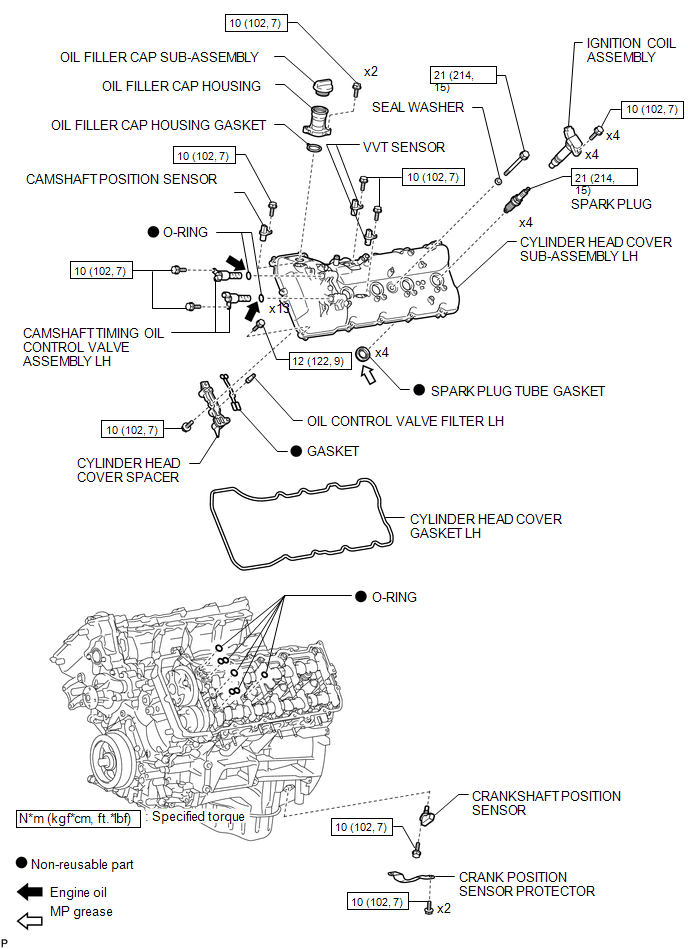

Fig 3: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

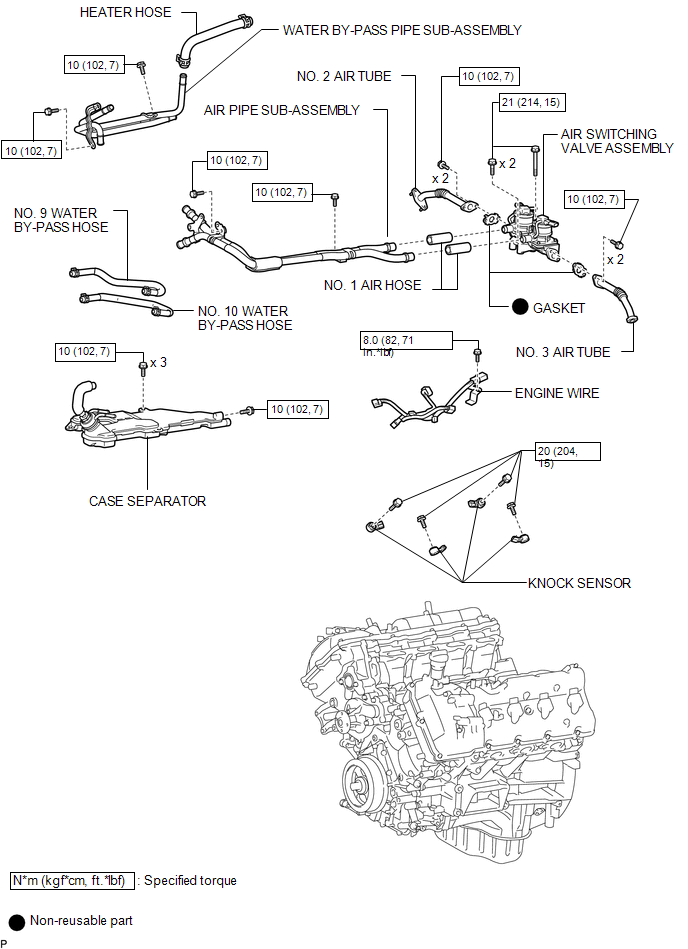

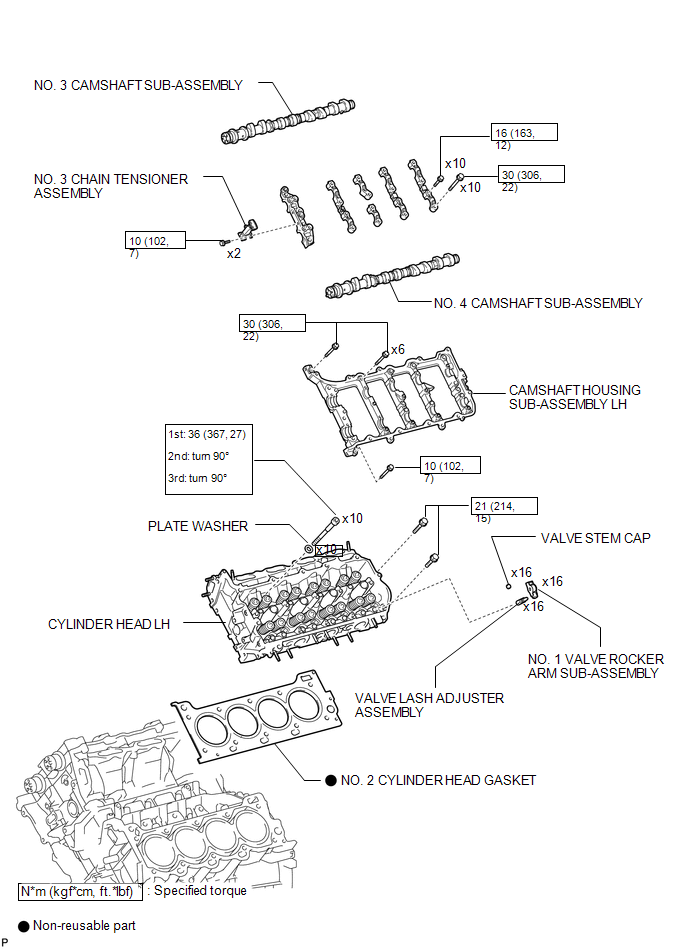

Fig 4: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

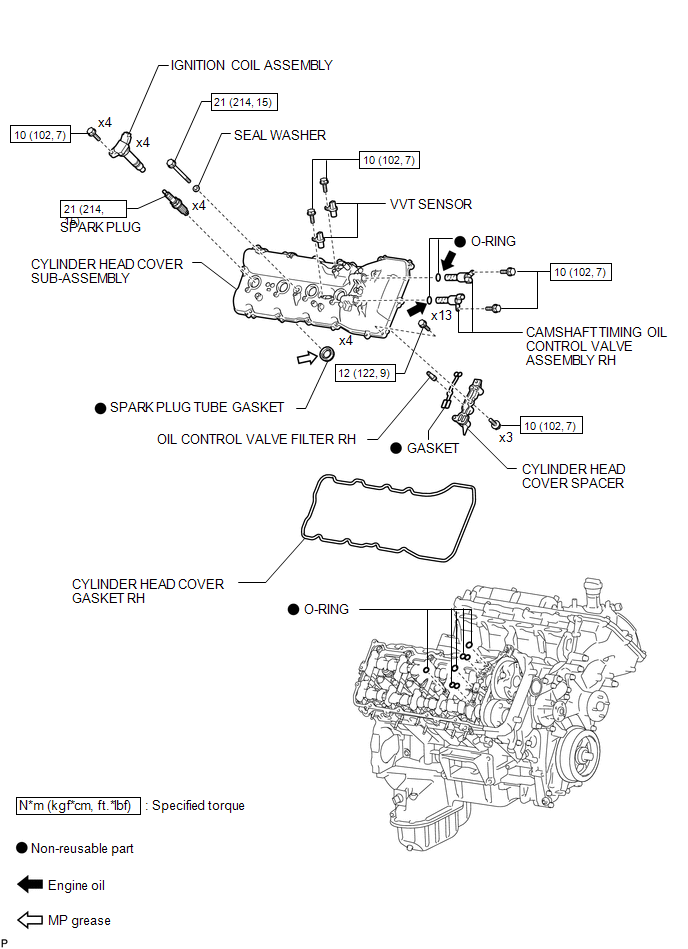

Fig 5: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

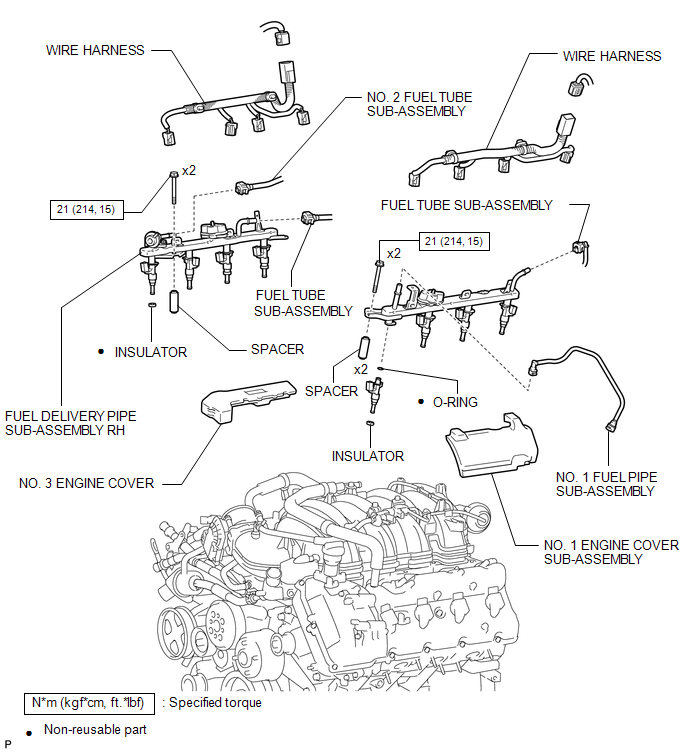

Fig 6: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

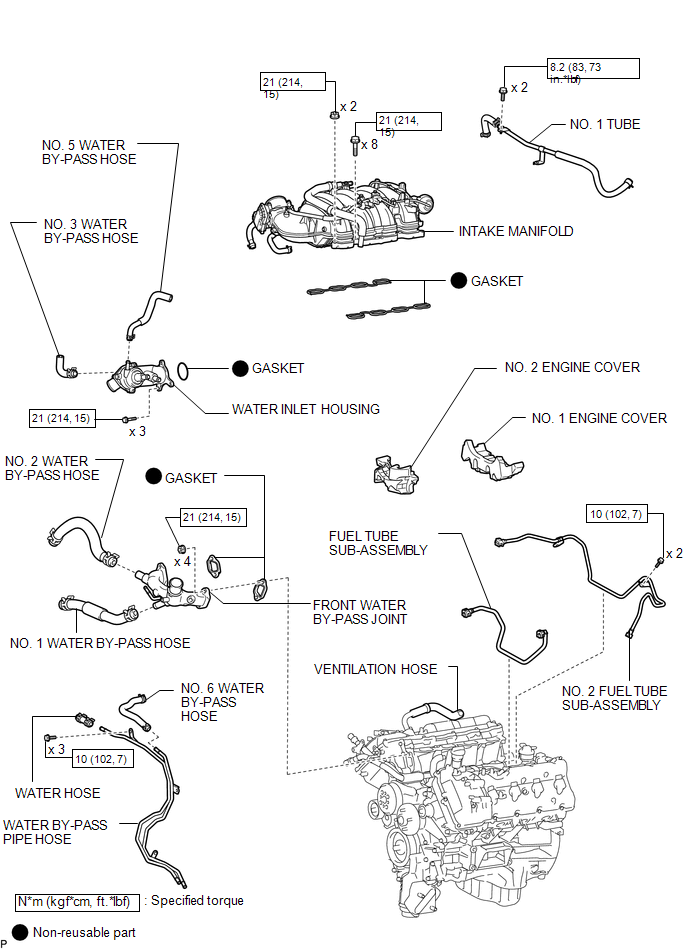

Fig 7: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

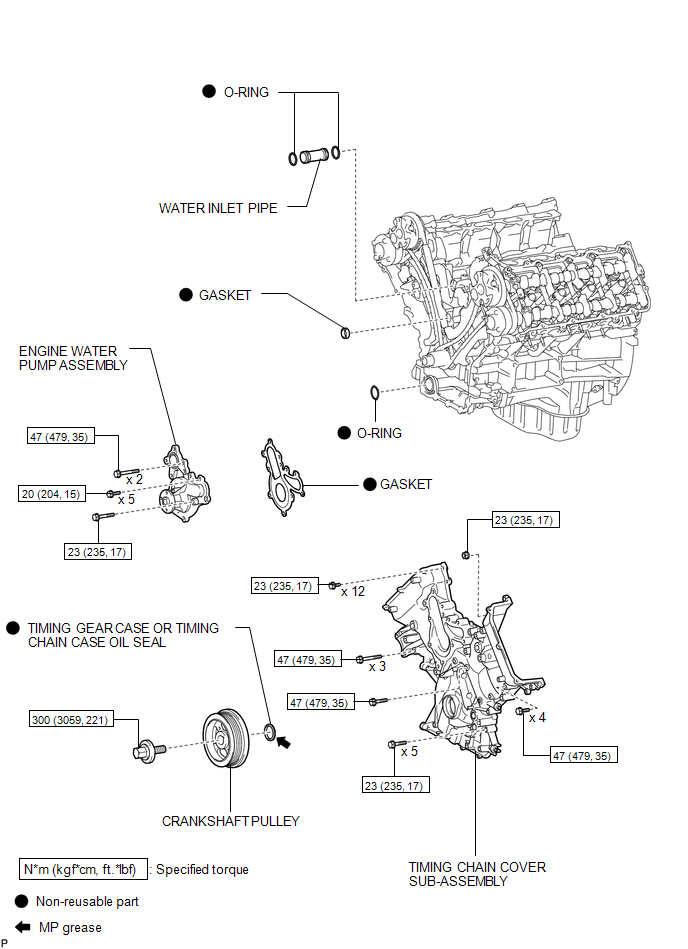

Fig 8: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (8 Of 12)

Fig 9: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (9 Of 12)

Fig 10: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (10 Of 12)

Fig 11: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (11 Of 12)

Fig 12: Engine Unit Replacement Components With Torque Specifications [08/2015 - 08/2018] (12 Of 12)
