Components [08/2015 - 08/2018]
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

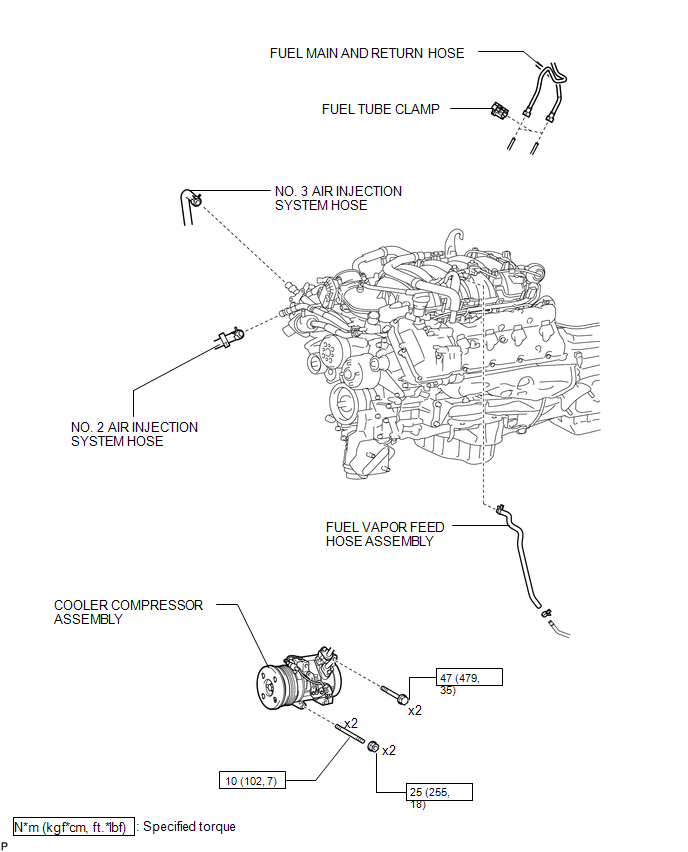

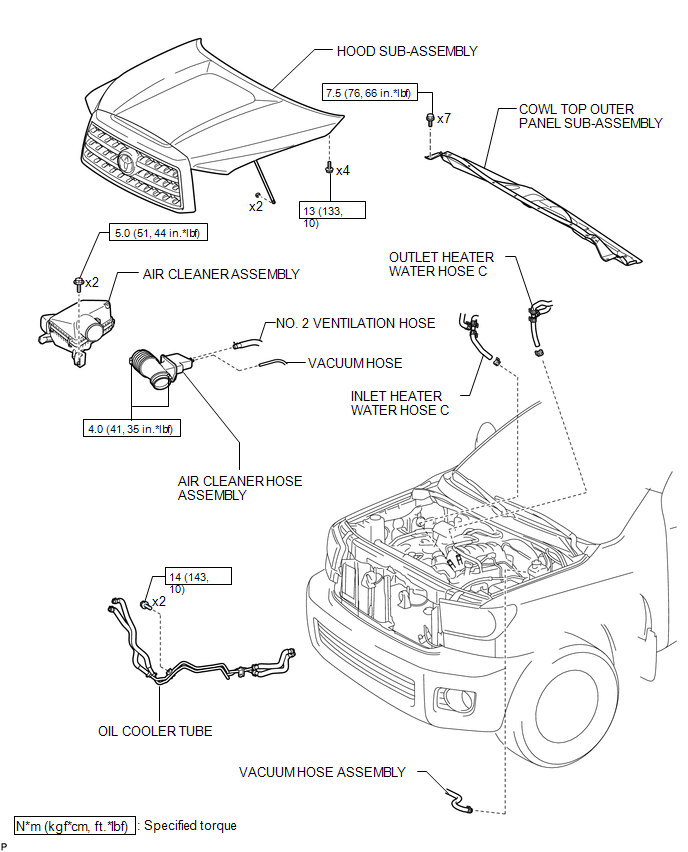

Fig 1: Engine Assembly Replacement Components With Torque Specifications [08/2015 - 08/2018] (1 Of 4)

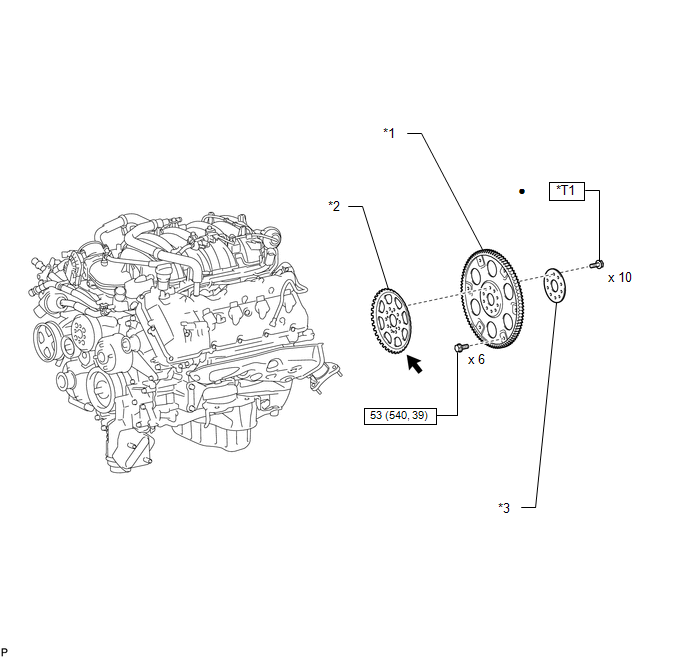

Fig 2: Engine Assembly Replacement Components With Torque Specifications [08/2015 - 08/2018] (2 Of 4)

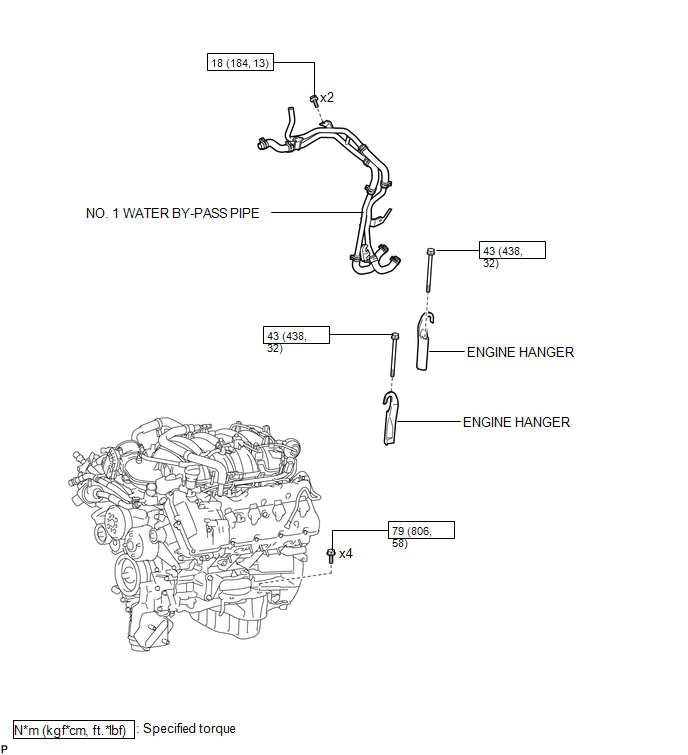

Fig 3: Engine Assembly Replacement Components With Torque Specifications [08/2015 - 08/2018] (3 Of 4)
| Callout | Description | Callout | Description |
| *1 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | *2 | REAR DRIVE PLATE SPACER |
| *3 | CRANKSHAFT ANGLE SENSOR ROTOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | MP grease | |
| *9 | 1st: 30 N.m (306 kgf/cm, 22 ft.lbf) 2nd: Turn 90° |
- | - |
