Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE EXHAUST MANIFOLD
    1. Remove the exhaust manifold. Refer to REMOVAL [08/2015 - 08/2018] .
  2. REMOVE CAMSHAFT
    1. Remove the camshaft. Refer to REMOVAL [08/2015 - 08/2018] .
  3. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
    1. Remove the 32 valve rocker arms from the cylinder head.

      HINT:

      Arrange the removed parts in the correct order.

  4. REMOVE VALVE LASH ADJUSTER ASSEMBLY
    1. Remove the 32 valve lash adjusters from the cylinder head.

      HINT:

      Arrange the removed parts in the correct order.

  5. REMOVE VALVE STEM CAP
    1. Remove the 32 valve stem caps from the cylinder head.

      HINT:

      Arrange the removed parts in the correct order.

  6. REMOVE CYLINDER HEAD LH
    1. Uniformly loosen and remove the 2 bolts in the sequence shown in the illustration.

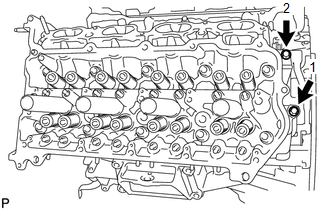

      Fig 1: Cylinder Head Bolts (LH) Tightening Sequence (1 Of 2)
      GTY599727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 10 mm bi-hexagon wrench, uniformly loosen the 10 cylinder head bolts in the sequence shown in the illustration. Remove the 10 cylinder head bolts and plate washers.

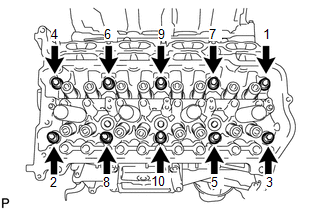

      Fig 2: Cylinder Head Bolts (LH) Tightening Sequence (2 Of 2)
      GTY542468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to drop washers into the cylinder head.
      • Head warpage or cracking could result from removing bolts in an incorrect order.

      HINT:

      Be sure to arrange the removed parts for each installation position separately.

  7. REMOVE NO. 2 CYLINDER HEAD GASKET
  8. REMOVE CYLINDER HEAD SUB-ASSEMBLY
    1. Uniformly loosen and remove the 2 bolts in the sequence shown in the illustration.

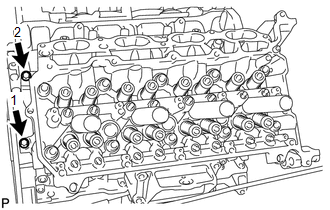

      Fig 3: Cylinder Head Sub-Assembly Loosening Sequence (1 Of 2)
      GTY603502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 10 mm bi-hexagon wrench, uniformly loosen the 10 cylinder head bolts in the sequence shown in the illustration. Remove the 10 cylinder head bolts and plate washers.

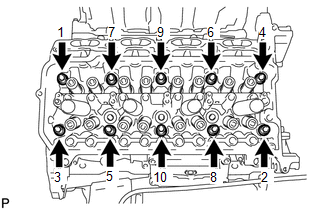

      Fig 4: Cylinder Head Sub-Assembly Loosening Sequence (2 Of 2)
      GTY601185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to drop washers into the cylinder head.
      • Head warpage or cracking could result from removing bolts in an incorrect order.

      HINT:

      Be sure to arrange the removed parts for each installation position separately.

  9. REMOVE CYLINDER HEAD GASKET
