Replacement [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REPLACE STRAIGHT PIN
    NOTE:

    It is not necessary to remove the straight pin unless it is being replaced.

    1. Remove the straight pins.
    2. Using a plastic-faced hammer, tap in new straight pins to the cylinder block.

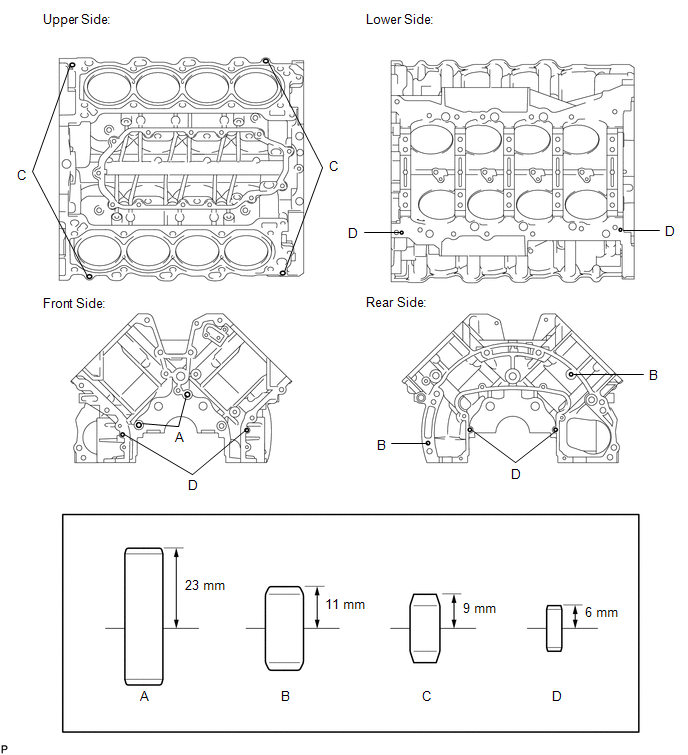

      GTY572728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Protrusion

      Item Pin Diameter Specified Condition
      Pin A 10 mm (0.394 in.) 23 mm (0.906 in.)
      Pin B 10 mm (0.394 in.) 11 mm (0.433 in.)
      Pin C 8 mm (0.315 in.) 9 mm (0.354 in.)
      Pin D 4 mm (0.157 in.) 6 mm (0.236 in.)
