Installation [08/2015 - 10/2016]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CAMSHAFTS (for Bank 1)
    1. Apply a light coat of engine oil to the camshaft journals, camshaft housings and bearing caps.

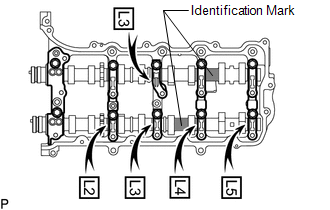

    2. GTY595731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the No. 3 and No. 4 camshafts to the camshaft housing.

      HINT:

      Check the identification mark stamped on the camshaft.

      Item Mark
      for Intake Side NO. 3
      for Exhaust Side NO. 4
    3. Confirm the marks and numbers on the camshaft bearing caps and place them in their proper positions and directions.
    4. Temporarily install the 10 bolts in the order shown in the illustration.

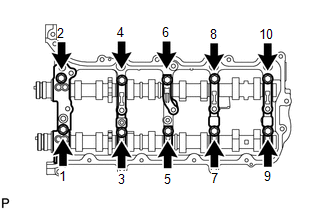

      Fig 1: Camshaft Bearing Caps Bolt Tightening Sequence (Bank 1)
      GTY540547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY LH
    GTY575286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

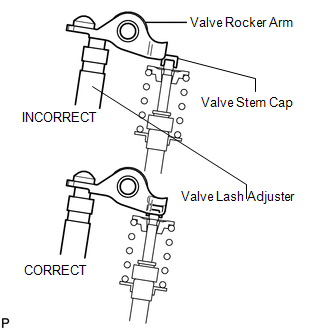

    1. Make sure that the valve rocker arms are installed as shown in the illustration.

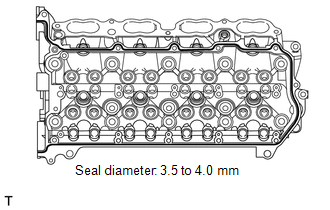

    2. Apply seal packing in a continuous line as shown in the illustration.
      GTY610228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Standard seal diameter

      3.5 to 4.0 mm (0.138 to 0.157 in.)

      NOTE:
      • Remove any oil from the contact surface.
      • Install the camshaft housing within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
    3. Install the camshaft housing, and install the 18 bolts in the order shown in the illustration.

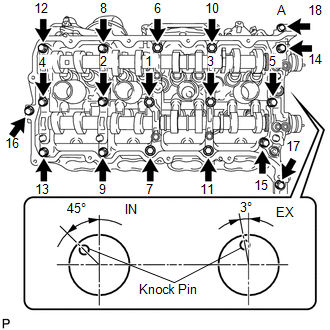

      Fig 2: Camshaft Housing Tightening Sequence LH (1 Of 2)
      GTY600585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for bolt A

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      except bolt A

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

      NOTE:
      • Do not start the engine for at least 2 hours after the installation.
      • Make sure that the knock pin of the camshaft is positioned as shown in the illustration before installing the camshaft housing.

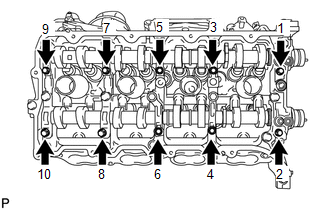

    4. Tighten the 10 bolts in the order shown in the illustration.
      Fig 3: Camshaft Housing Tightening Sequence LH (2 Of 2)
      GTY540558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)

      NOTE:

      Thoroughly wipe clean any seal packing.

  3. INSTALL CAMSHAFTS (for Bank 2)
    1. Apply a light coat of engine oil to the camshaft journals, camshaft housings and bearing caps.
    2. GTY447987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

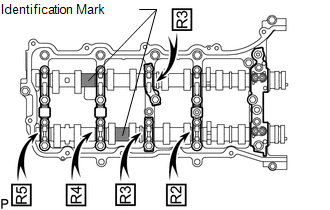

      Install the No. 1 and No. 2 camshafts to the camshaft housing.

      HINT:

      Check the identification mark stamped on the camshaft.

      Item Mark
      for Intake Side NO. 1
      for Exhaust Side NO. 2
    3. Confirm the marks and numbers on the camshaft bearing caps and place them in their proper positions and directions.

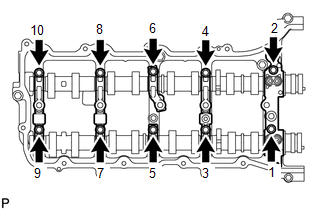

    4. Temporarily install the 10 bolts in the order shown in the illustration.
      Fig 4: Camshaft Bearing Caps Bolt Tightening Sequence (Bank 2)
      GTY582719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY RH
    GTY575286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Make sure that the valve rocker arms are installed as shown in the illustration.

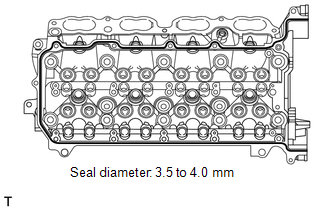

    2. Apply seal packing in a continuous line as shown in the illustration.
      GTY608687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Standard seal diameter

      3.5 to 4.0 mm (0.138 to 0.157 in.)

      NOTE:
      • Remove any oil from the contact surface.
      • Install the camshaft housing within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
    3. Install the camshaft housing, and install the 18 bolts in the order shown in the illustration.

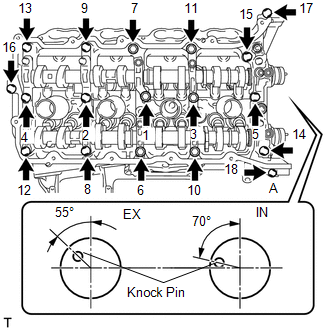

      Fig 5: Camshaft Housing Tightening Sequence RH (1 Of 2)
      GTY563183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for bolt A

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      except bolt A

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

      NOTE:
      • Do not start the engine for at least 2 hours after the installation.
      • Make sure that the knock pin of the camshaft is positioned as shown in the illustration before installing the camshaft housing.
    4. Tighten the 10 bolts in the order shown in the illustration.

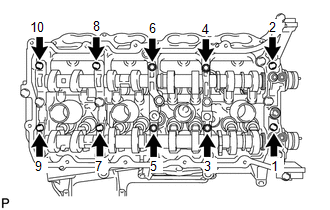

      Fig 6: Camshaft Housing Tightening Sequence RH (2 Of 2)
      GTY561725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)

      NOTE:

      Thoroughly wipe clean any seal packing.

  5. INSTALL NO. 2 CHAIN TENSIONER ASSEMBLY

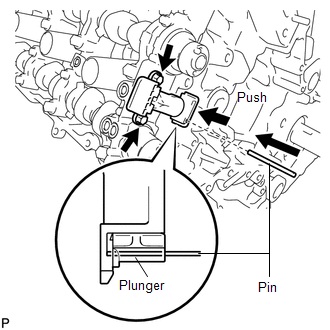

    1. Install the chain tensioner with the 2 bolts.
      GTY568116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. While raising up the No. 2 chain tensioner, insert a pin of 1.0 mm (0.0394 in.) into the hole to fix it in place.
  6. INSTALL CHAIN SUB-ASSEMBLY (for RH Side)

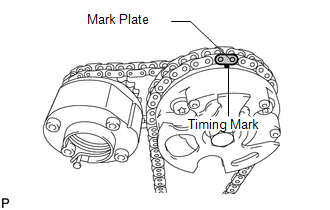

    1. Align the No. 1 chain's orange mark plate with the camshaft timing gear's timing mark, and attach the chain to the gear as shown in the illustration.
      GTY571387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the No. 1 chain's orange mark plate with the crankshaft timing gear's timing mark, and attach the chain to the gear as shown in the illustration.
      GTY608184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

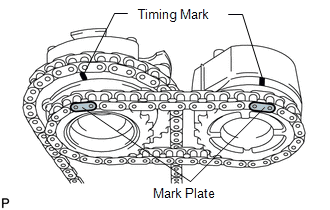

    3. Align the No. 2 chain's mark plates (yellow) with the timing marks of the camshaft timing gear and camshaft timing exhaust gear, and attach the No. 2 chain to the gears as shown in the illustration.
      GTY551363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The camshaft timing exhaust gear has 2 grooves. Align the mark plates of the No. 2 chain with the first groove.

      HINT:

      The crankshaft timing gear and camshaft exhaust gear will be installed with the No. 1 and No. 2 chains connected to the gears.

    4. Install the crankshaft timing sprocket to the crankshaft.
    5. Align and attach the knock pin of the No. 1 camshaft with the pin hole of the camshaft timing gear.
    6. Using the hexagonal portion of the No. 2 camshaft, align and attach the knock pin of the No. 2 camshaft with the pin hole of the camshaft timing exhaust gear.
    7. Remove the pin from the No. 2 chain tensioner.
    8. Using a wrench to hold the hexagonal portion of the No. 1 camshaft, temporarily install the bolt.
    9. Using a wrench to hold the hexagonal portion of the No. 2 camshaft, temporarily install the bolt.
  7. INSTALL NO. 1 CHAIN VIBRATION DAMPER (for RH Side)

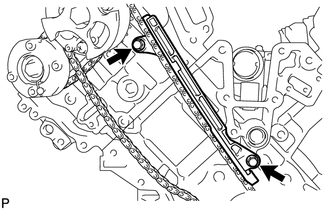

    1. Install the vibration damper with the 2 bolts.
      GTY611038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

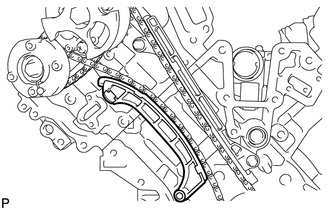

  8. INSTALL CHAIN TENSIONER SLIPPER (for RH Side)
    GTY584110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If you cannot install the chain tensioner slipper due to the tension of the chain, use the hexagonal portion of the camshaft to loosen the chain, and then install the chain tensioner slipper.

  9. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY (for RH Side)
    1. GTY141707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Move the stopper plate upward to release the lock, and push the plunger deep into the tensioner.

    2. Move the stopper plate downward to set the lock, and insert a hexagon wrench into the hole of the stopper plate.

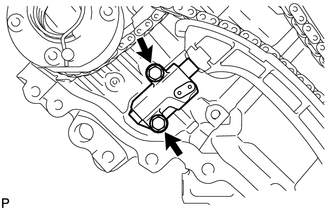

    3. Install the chain tensioner with the 2 bolts.
      GTY585934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    4. Remove the hexagon wrench from the chain tensioner.
  10. INSTALL NO. 3 CHAIN TENSIONER ASSEMBLY

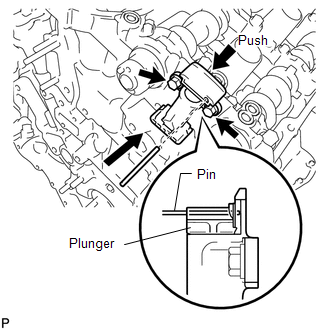

    1. Install the chain tensioner with the 2 bolts.
      GTY561749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. While pushing down the No. 2 chain tensioner, insert a pin of 1.0 mm (0.0394 in.) into the hole to fix it in place.
  11. INSTALL CHAIN SUB-ASSEMBLY (for LH Side)

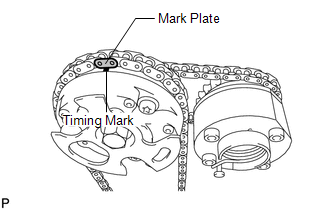

    1. Align the No. 1 chain's orange mark plate with the camshaft timing gear's timing mark, and attach the chain to the gear as shown in the illustration.
      GTY578900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the No. 1 chain's orange mark plate with the crankshaft timing gear's timing mark, and attach the chain to the gear as shown in the illustration.
      GTY546543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

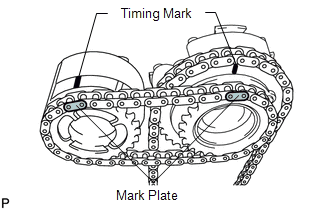

    3. Align the No. 2 chain's mark plates (yellow) with the timing marks of the camshaft timing gear and camshaft timing exhaust gear, and attach the No. 2 chain to the gears as shown in the illustration.
      GTY601846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The camshaft timing exhaust gear has 2 grooves. Align the mark plates of the No. 2 chain with the first groove.

      HINT:

      The crankshaft timing gear and camshaft exhaust gear will be installed with the No. 1 and No. 2 chains connected to the gears.

    4. Install the crankshaft timing sprocket to the crankshaft.
    5. Align and attach the knock pin of the No. 3 camshaft with the pin hole of the camshaft timing gear.
    6. Using the hexagonal portion of the No. 4 camshaft, align and attach the knock pin of the No. 4 camshaft with the pin hole of the camshaft timing exhaust gear.
      NOTE:

      Because the gears' timing mark positions may shift due to looseness of the No. 1 chain, use the hexagonal portion of the camshaft to hold the No. 3 camshaft in place until the No. 1 chain tensioner is installed.

    7. Remove the pin from the No. 3 chain tensioner.
    8. Using a wrench to hold the hexagonal portion of the No. 3 camshaft, temporarily install the bolt.
    9. Using a wrench to hold the hexagonal portion of the No. 4 camshaft, temporarily install the bolt.

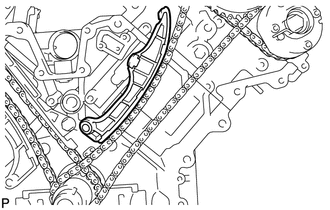

  12. INSTALL CHAIN TENSIONER SLIPPER (for LH Side)
    GTY148636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If you cannot install the chain tensioner slipper due to the tension of the chain, use the hexagonal portion of the camshaft to loosen the chain and install the chain tensioner.

  13. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY (for LH Side)
    1. Move the stopper plate upward to release the lock, and push the plunger deep into the tensioner.
      GTY100671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the stopper plate downward to set the lock, and insert a hexagon wrench into the hole of the stopper plate.

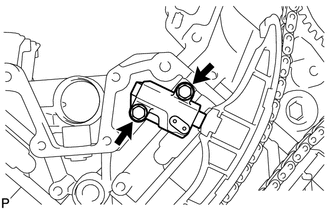

    3. Install a new gasket and the chain tensioner with the 2 bolts.
      GTY580687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

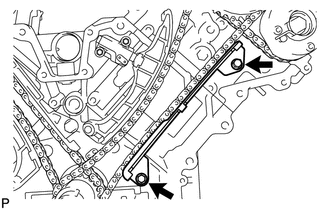

  14. INSTALL NO. 1 CHAIN VIBRATION DAMPER (for LH Side)
    1. GTY121343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the vibration damper with the 2 bolts.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    2. Remove the hexagon wrench from the No. 1 chain tensioner.
  15. TIGHTEN CAMSHAFT TIMING GEAR ASSEMBLY (for LH Side)

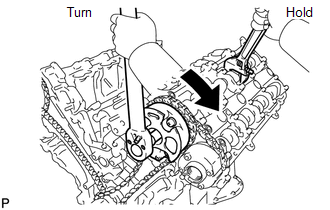

    1. Using a wrench to hold the hexagonal portion of the No. 3 camshaft, tighten the camshaft timing gear with the bolt.
      GTY591982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 100 N.m (1020 kgf/cm, 74 ft.lbf)

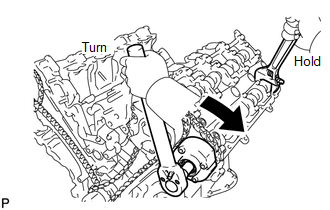

    2. Using a wrench to hold the hexagonal portion of the No. 4 camshaft, tighten the camshaft timing exhaust gear with the bolt.
      GTY608325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 100 N.m (1020 kgf/cm, 74 ft.lbf)

  16. TIGHTEN CAMSHAFT TIMING GEAR ASSEMBLY (for RH Side)

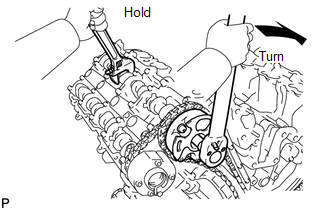

    1. Using a wrench to hold the hexagonal portion of the No. 1 camshaft, tighten the camshaft timing gear with the bolt.
      GTY545335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 100 N.m (1020 kgf/cm, 74 ft.lbf)

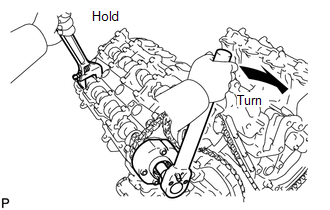

    2. Using a wrench to hold the hexagonal portion of the No. 2 camshaft, tighten the camshaft timing exhaust gear with the bolt.
      GTY597567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 100 N.m (1020 kgf/cm, 74 ft.lbf)

  17. CHECK NO. 1 CYLINDER TO TDC/COMPRESSION
    1. Temporarily install the pulley set bolt.

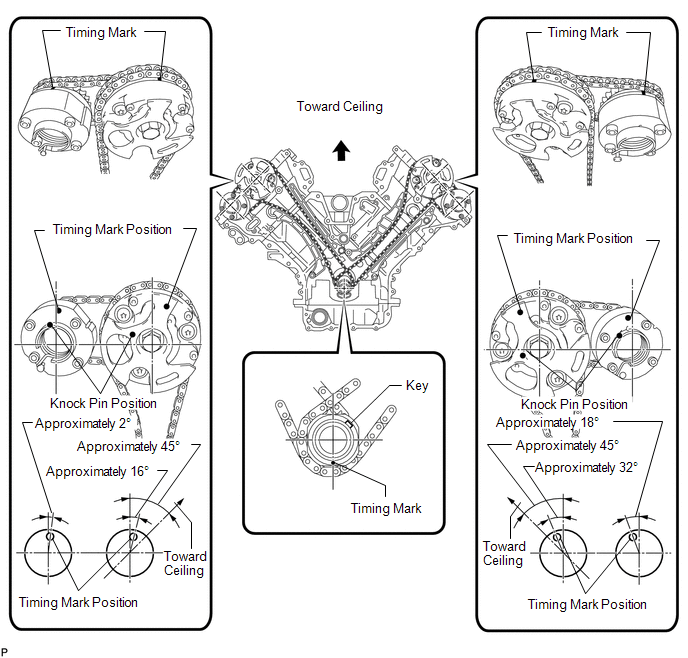

    2. Rotate the crankshaft clockwise, and check that the timing marks on the crankshaft timing gear and camshaft timing gears are as shown in the illustration.
      GTY573450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the crankshaft pulley bolt.
  18. INSTALL TIMING CHAIN COVER SUB-ASSEMBLY
    1. Install the timing chain cover. Refer to INSTALLATION [08/2015 - 08/2018] .
