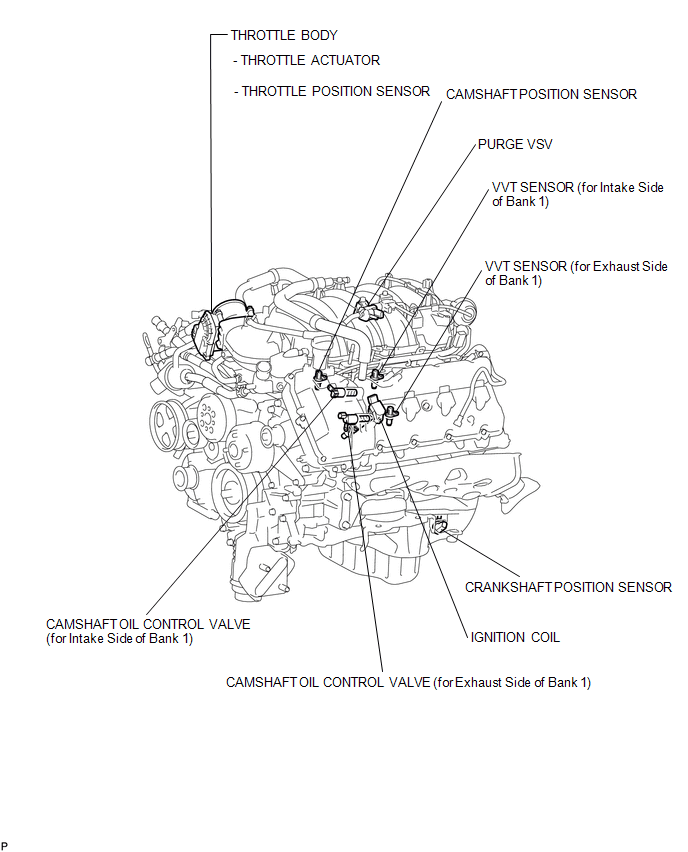

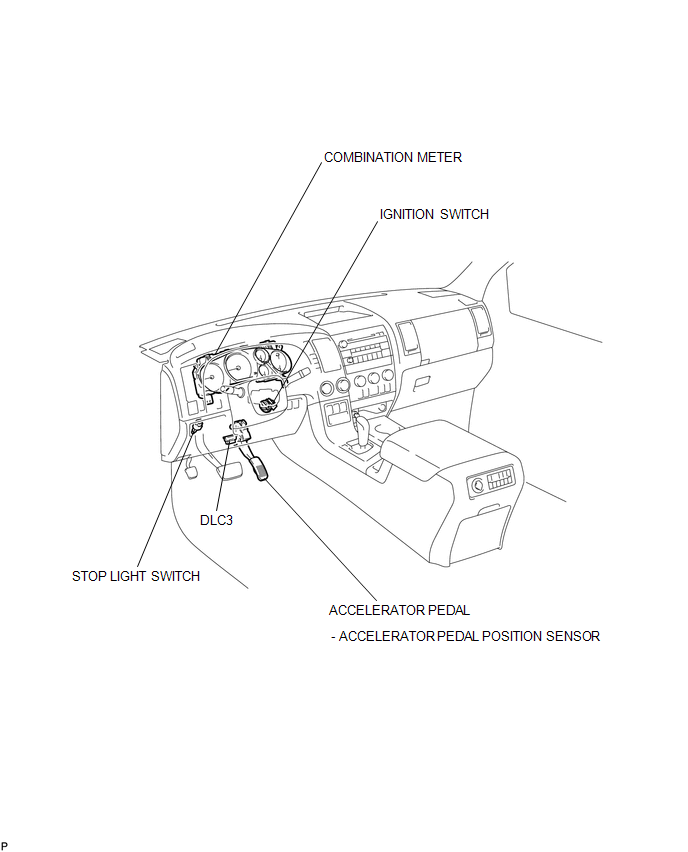

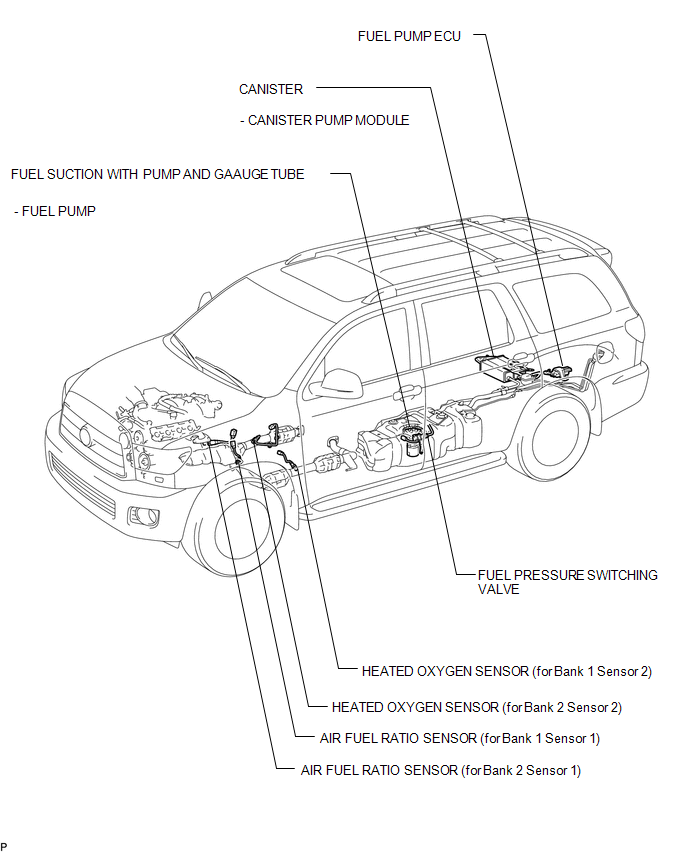

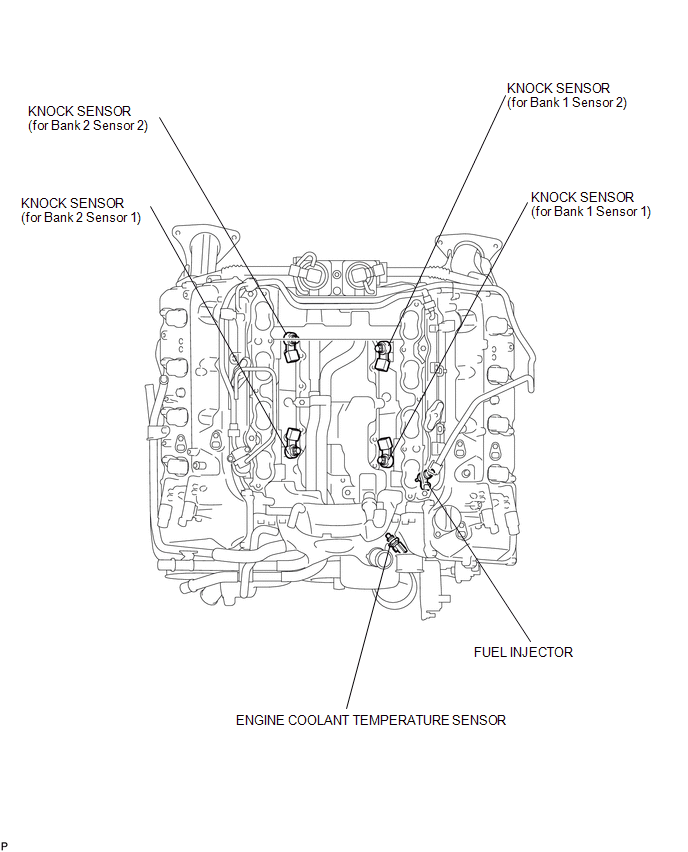

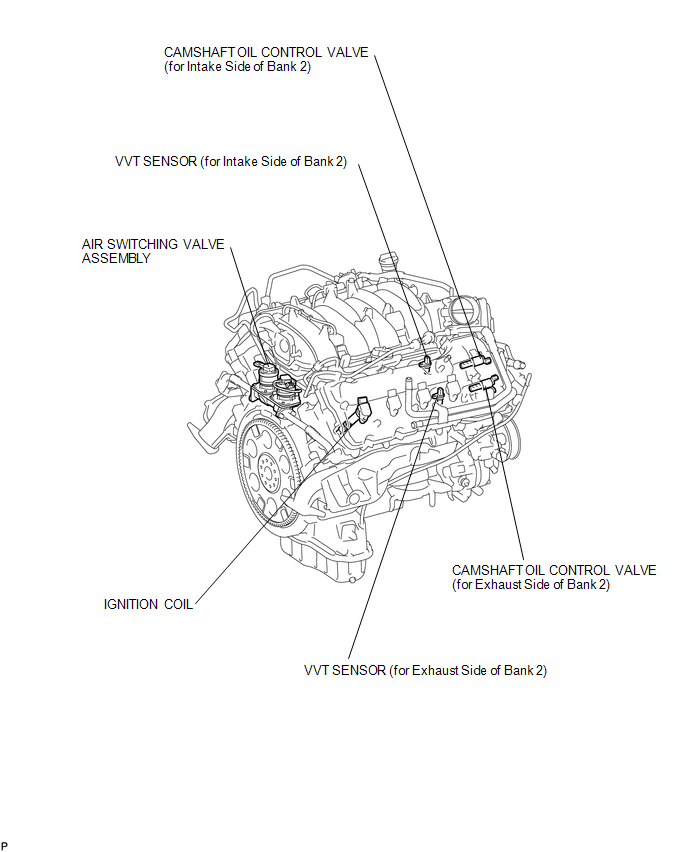

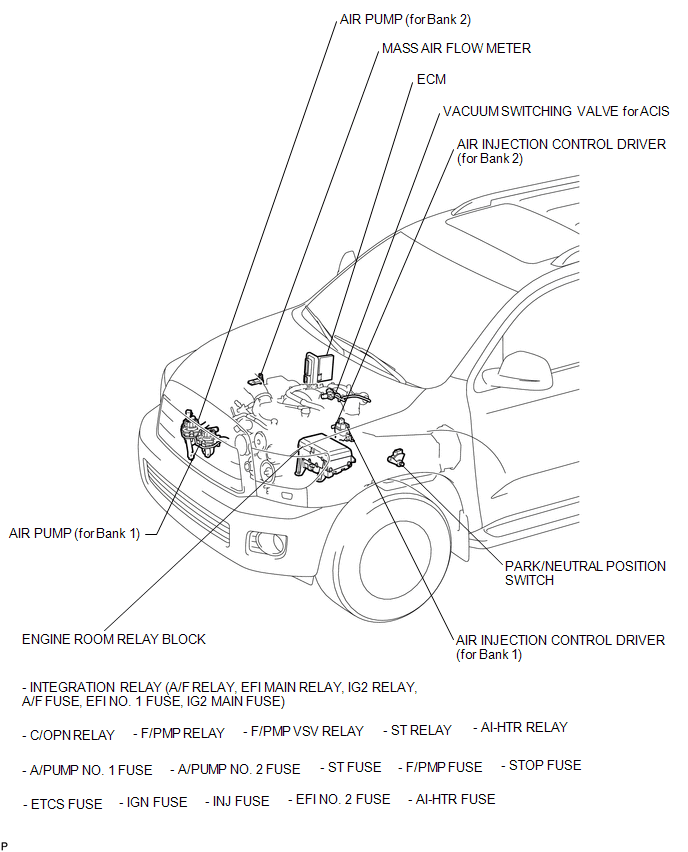

Parts Location [08/2017 - 08/2018]: Illustration
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
