DTC B27A8: Open in Outside Luggage Compartment Electrical Key Antenna Circuit [08/2019 - ]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Sequoia, 2021 Toyota Sequoia, and 2020 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK CONNECTOR CONNECTION
- Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and electrical key antenna (outside luggage compartment).
OK
Connectors are properly connected.
Result
Proceed to OK NG
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 2
- Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and electrical key antenna (outside luggage compartment).
- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT))
- Disconnect the H198 certification ECU (smart key ECU assembly) connector.
- Disconnect the T5 electrical key antenna (outside luggage compartment) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition H198-2 (CLG8) - T5-2 (ANTE8) Always Below 1 Ω H198-1 (CG8B) - T5-1 (CLGB) Always Below 1 Ω - Reconnect the H198 certification ECU (smart key ECU assembly) connector.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT))

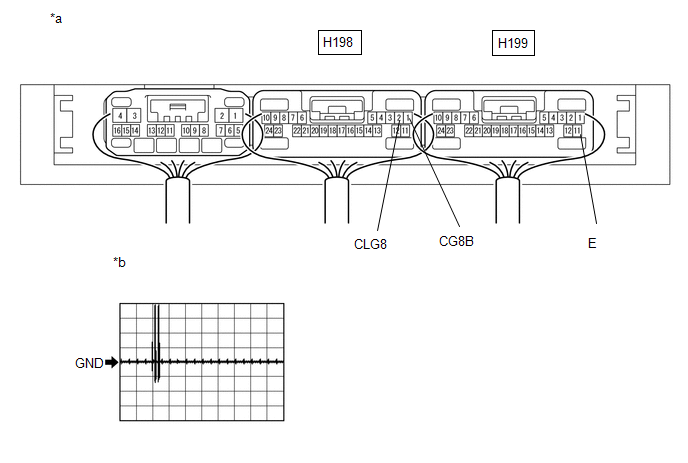

*a Replacement Component with harness connected
(Certification ECU (Smart Key ECU Assembly))*b Waveform 1 - Using an oscilloscope, check the waveform.
OK
Tester Connection Condition Tool Setting Specified Condition H198-2 (CLG8) - H199-11 (E) Procedure: - Engine switch off
- Electrical key transmitter sub-assembly brought outside vehicle
- All doors closed
- Tail gate control switch assembly or back door outside handle off → on
2 V/DIV., 500 ms/DIV. Pulse generation
(See waveform 1)H198-1 (CG8B) - H199-11 (E) Procedure: - Engine switch off
- Electrical key transmitter sub-assembly brought outside vehicle
- All doors closed
- Tail gate control switch assembly or back door outside handle off → on
2 V/DIV., 500 ms/DIV. Pulse generation
(See waveform 1)- *: For details about the entry function detection area, refer to Operation Check.
Refer to OPERATION CHECK [08/2019 - ]
Result
Proceed to OK NG
Result:
OK
REPLACE ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT). Refer to REMOVAL [08/2019 - ]
Result:
NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL [08/2019 - ]
- Using an oscilloscope, check the waveform.
