DTC B27A1: Open in Driver Side Electrical Antenna Circuit [08/2019 - ]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Sequoia, 2021 Toyota Sequoia, and 2020 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK CONNECTOR CONNECTION
- Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and front door outside handle assembly LH.
OK
Connectors are properly connected.
Result
Proceed to OK NG
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 2
- Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and front door outside handle assembly LH.
- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH)
- Disconnect the H199 certification ECU (smart key ECU assembly) connector.
- Disconnect the M15 front door outside handle assembly LH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition H199-4 (CLG1) - M15-1 (ANT1) Always Below 1 Ω H199-3 (CG1B) - M15-2 (ANT2) Always Below 1 Ω - Reconnect the H199 certification ECU (smart key ECU assembly) connector.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH)

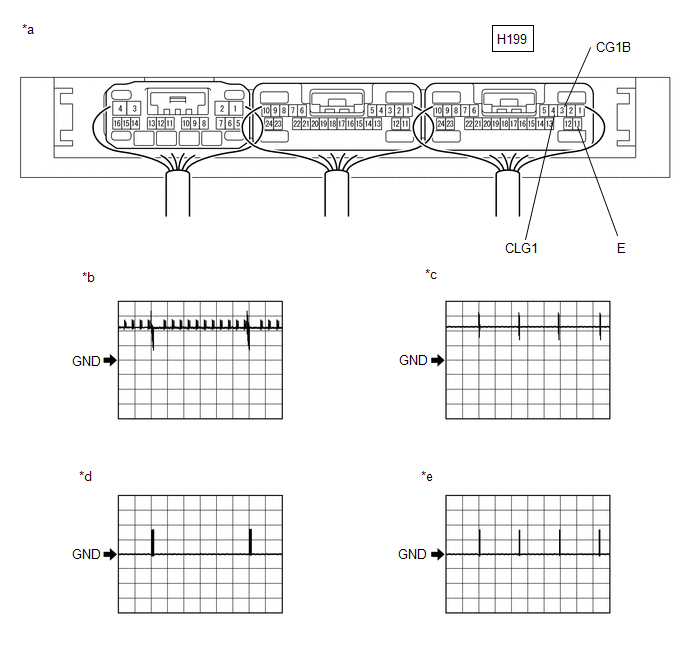

*a Replacement Component with harness connected
(Certification ECU (Smart Key ECU Assembly))*b Waveform 1 *c Waveform 2 *d Waveform 3 *e Waveform 4 - - - Using an oscilloscope, check the waveform.
OK
Tester Connection Condition Tool Setting Specified Condition H199-4 (CLG1) - H199-11 (E) Procedure: - Engine switch off
- All doors closed
- Electrical key transmitter sub-assembly not inside vehicle
- All doors locked through wireless operation
(electrical key transmitter sub-assembly brought inside detection area*)
5 V/DIV., 500 ms/DIV. Pulse generation
(See waveform 1)Procedure: - Engine switch off
- All doors closed
- Electrical key transmitter sub-assembly not inside vehicle
- All doors locked through wireless operation
(electrical key transmitter sub-assembly brought outside detection area*)
5 V/DIV., 100 ms/DIV. Pulse generation
(See waveform 2)H199-3 (CG1B) - H199-11 (E) Procedure: - Engine switch off
- All doors closed
- Electrical key transmitter sub-assembly not inside vehicle
- All doors locked through wireless operation
(electrical key transmitter sub-assembly brought inside detection area*)
5 V/DIV., 500 ms/DIV. Pulse generation
(See waveform 3)Procedure: - Engine switch off
- All doors closed
- Electrical key transmitter sub-assembly not inside vehicle
- All doors locked through wireless operation
(electrical key transmitter sub-assembly brought outside detection area*)
5 V/DIV., 100 ms/DIV. Pulse generation
(See waveform 4)- *: For details about the entry function detection area, refer to Operation Check.
Refer to OPERATION CHECK [08/2019 - ]
Result
Proceed to OK NG
Result:
OK
REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH. Refer to DISASSEMBLY [08/2019 - ]
Result:
NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL [08/2019 - ]
- Using an oscilloscope, check the waveform.
