Immobiliser System does not Operate Properly [08/2019 - ]: Procedure
- CHECK FOR DTC
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Smart Key / Trouble Codes and Powertrain / Engine and ECT / Trouble Codes.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [08/2019 - ]
Result
Result Proceed to DTCs are not output A DTCs are output B
Result:
B
GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2019 - ]
Result:
A
See step 2
- READ VALUE USING TECHSTREAM (IMMOBILISER FUEL CUT STATUS)
- Enter the following menus: Powertrain / Engine and ECT / Data List.
- Read the Data List according to the display on the Techstream.ENGINE AND ECT
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Immobiliser Fuel Cut Status Status of immobiliser fuel cut/
OFF or ONOFF: Fuel cut off
ON: Fuel cut on- OK
OFF is displayed after the engine is started.
Result
Proceed to OK NG
Result:
OK
GO TO SFI SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING). Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - ]
Result:
NG
See step 3
- CHECK WHETHER ENGINE STARTS
- Check that the engine starts within 5 seconds of the engine switch being turned on (IG).
OK
Engine starts normally.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2019 - ]
Result:
NG
See step 4
- Check that the engine starts within 5 seconds of the engine switch being turned on (IG).
- CHECK ECM (TERMINAL EFII AND EFIO)
- Using an oscilloscope, check the waveform.

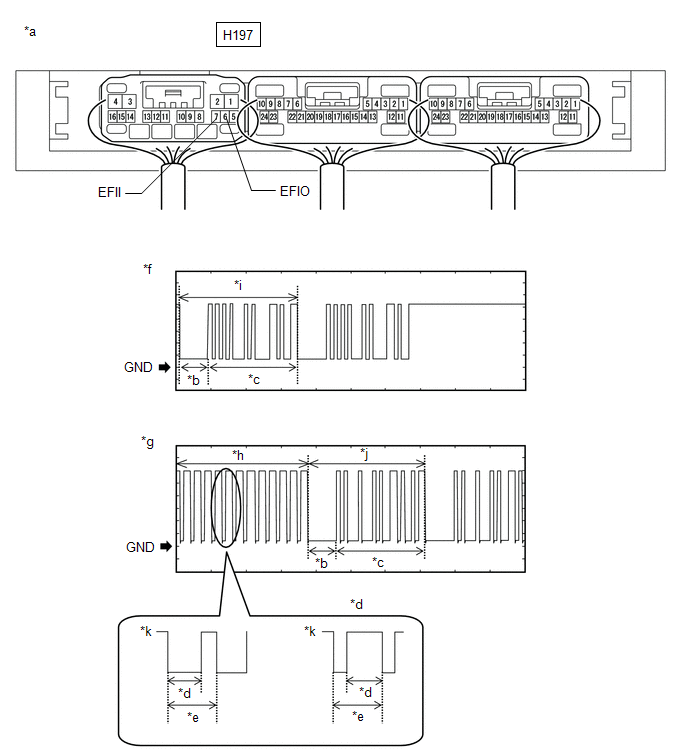

*a Component with harness connected
(Certification ECU (Smart Key ECU Assembly))*b Approximately 160 ms. *c Approximately 510 ms. *d Approximately 40 ms. *e Approximately 60 ms. *f EFII Waveform *g EFIO Waveform *h Waveform A *i Waveform B *j Waveform C *k Waveform A (detail) - - NOTE:The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.
Measurement Condition
Tester Connection Condition Tool Setting Specified Condition H197-7 (EFII) - Body ground Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery 2 V/DIV., 500 ms./DIV. Pulse generation
(See EFII waveform)H197-6 (EFIO) - Body ground Within 3 seconds of engine start or within 3 seconds of engine switch turned on (IG) after cable disconnected and reconnected to battery 2 V/DIV., 500 ms./DIV. Pulse generation
(See EFIO waveform)Result
Result Proceed to Normal waveform A Waveform A is not output, or has abnormal wavelength or shape B Waveform B is not output, or has abnormal wavelength or shape C Waveform C is not output, or has abnormal wavelength or shape D
Result:
B
See step 7
Result:
C
REPLACE ECM. Refer to REMOVAL [08/2015 - ]
Result:
D
See step 8
Result:
A
See step 5
- Using an oscilloscope, check the waveform.
- REGISTER ECU COMMUNICATION ID (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - ECM)
- Register the ECU communication ID codes.
HINT:
Refer to Registration.
Refer to REGISTRATION [08/2019 - ]
Result
Proceed to NEXT
Result:
NEXT
See step 6
- Register the ECU communication ID codes.
- CHECK WHETHER ENGINE STARTS
Result:
OK
END (COMMUNICATION ID WAS NOT REGISTERED)
Result:
NG
See step 8
- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - ECM)
- Disconnect the H197 certification ECU (smart key ECU assembly) connector.
- Disconnect the A27 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition H197-7 (EFII) - A27-48 (IMO) Always Below 1 Ω H197-6 (EFIO) - A27-46 (IMI) Always Below 1 Ω H197-7 (EFII) or A27-48 (IMO) - Other terminals and body ground Always 10 kΩ or higher H197-6 (EFIO) or A27-46 (IMI) - Other terminals and body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
See step 8
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
- Replace the certification ECU (smart key ECU assembly) with a new one.
Refer to REMOVAL [08/2019 - ]
Result
Proceed to NEXT
Result:
NEXT
See step 9
- Replace the certification ECU (smart key ECU assembly) with a new one.
- REGISTER RECOGNITION CODE
- Register the recognition codes to the ECUs.
HINT:
Refer to Registration.
Refer to REGISTRATION [08/2019 - ]
Result
Proceed to NEXT
Result:
NEXT
See step 10
- Register the recognition codes to the ECUs.
- REGISTER ECU COMMUNICATION ID
- Register the ECU communication ID codes.
HINT:
Refer to Registration.
Refer to REGISTRATION [08/2019 - ]
Result
Proceed to NEXT
Result:
NEXT
See step 11
- Register the ECU communication ID codes.
- CHECK WHETHER ENGINE STARTS
Result:
OK
END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)
Result:
NG
GO TO SFI SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING). Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - ]
