Section 34 (Telematics System - Diagnostics - Introduction)
>>
Telematics System
>>

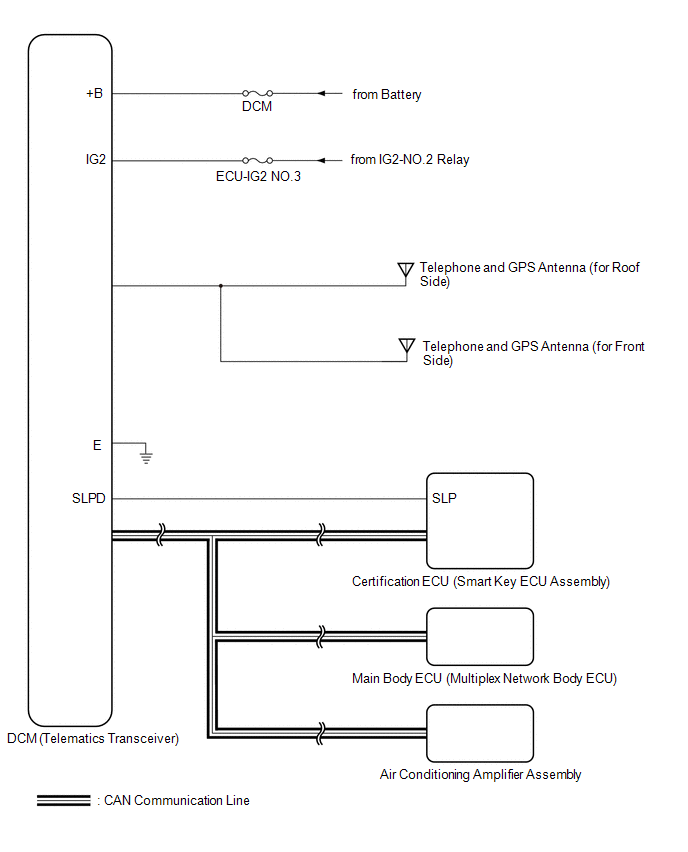

System Diagram [08/2019 - ]
>>
System Diagram [08/2019 - ]
System Diagram [08/2019 - ]
WARNING:
This page is about a different car, the 2022 Toyota Sequoia, 2021 Toyota Sequoia, and 2020 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
