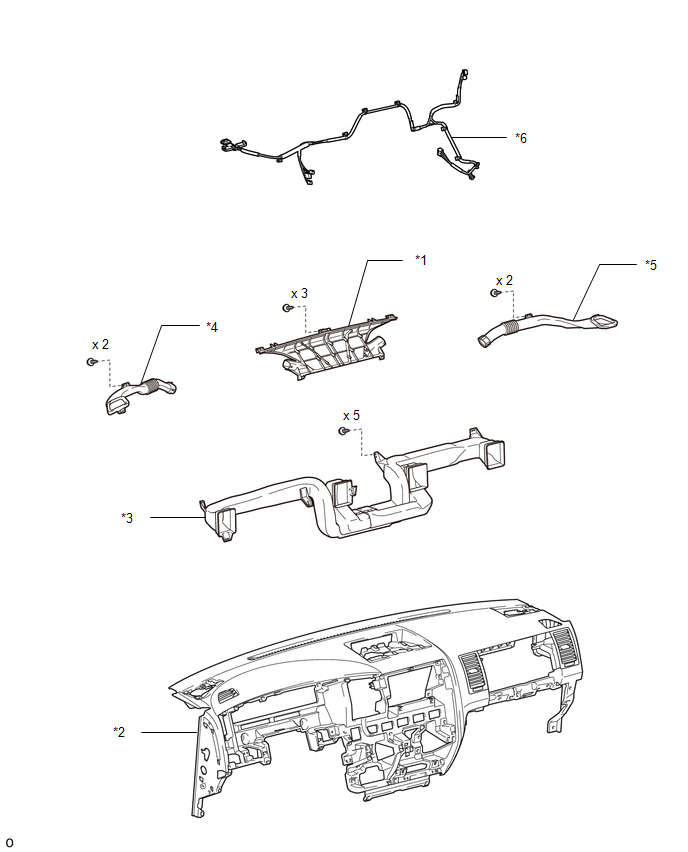

Components [08/2019 - ]
WARNING: This page is about a different car, the 2022 Toyota Sequoia, 2021 Toyota Sequoia, and 2020 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
DEFROSTER NOZZLE ASSEMBLY |
*2 |
INSTRUMENT PANEL SAFETY PAD |
| *3 |
NO. 1 HEATER TO REGISTER DUCT |
*4 |
NO. 1 SIDE DEFROSTER NOZZLE DUCT |
| *5 |
NO. 2 SIDE DEFROSTER NOZZLE DUCT |
*6 |
TELEPHONE AND GPS ANTENNA CORD ASSEMBLY |
