Removal [08/2019 - ]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Sequoia, 2021 Toyota Sequoia, and 2020 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [08/2019 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2019 - ]

  3. REMOVE DCM (TELEMATICS TRANSCEIVER)

    Refer to REMOVAL [08/2019 - ]

  4. REMOVE MOBILEPHONE BATTERY

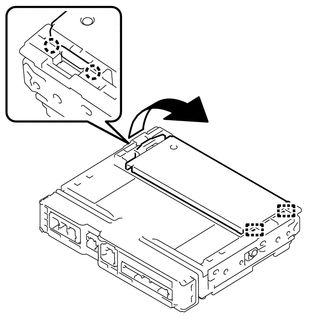

    1. Detach the 2 claws and 2 guides and remove the transceiver cover as shown in the illustration.
      GTY850250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

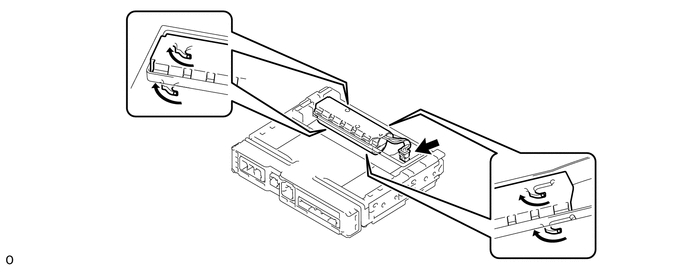

    2. Disconnect the connector and remove the mobilephone battery as shown in the illustration.
      GTY928847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
