Installation [08/2019 - ]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Sequoia, 2021 Toyota Sequoia, and 2020 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL MOBILEPHONE BATTERY

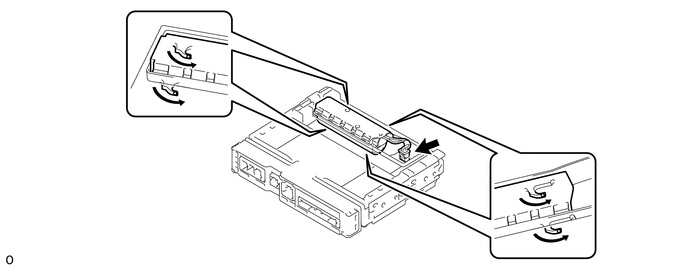

- Connect the connector and install the mobilephone battery as shown in the illustration.NOTE:
Check that the connector is securely connected.
- Insert the 2 guides and attach the 2 claws to install the transceiver cover as shown in the illustration.NOTE:
Check that the transceiver cover does not lift up.
- Connect the connector and install the mobilephone battery as shown in the illustration.
- INSTALL DCM (TELEMATICS TRANSCEIVER)
Refer to INSTALLATION [08/2019 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [08/2019 - ]
- CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [08/2019 - ]
- PERFORM REGISTRATION NOTE:
When replacing the mayday battery or DCM (telematics transceiver) together with the mayday battery, perform registration.
Refer to DCM ACTIVATION [08/2019 - ]
