Components [08/2019 - ]

WARNING: This page is about a different car, the 2022 Toyota Sequoia, 2021 Toyota Sequoia, and 2020 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

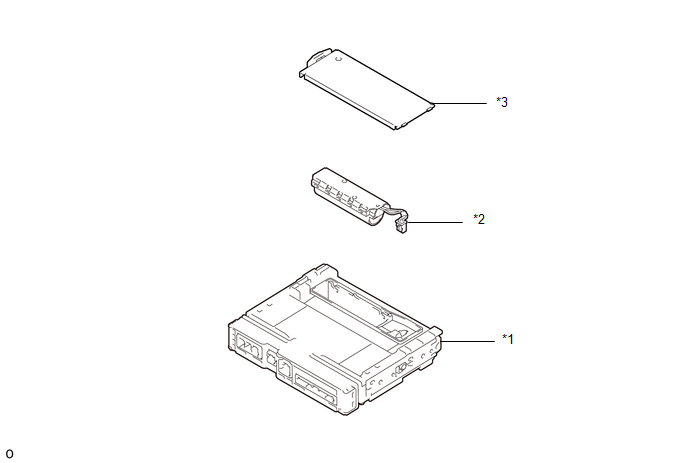

Fig 1: Back-Up Battery Replacement Components
GTY842641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DCM (TELEMATICS TRANSCEIVER) *2 MOBILEPHONE BATTERY
*3 TRANSCEIVER COVER - -
