Inspection [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT GENERATOR ROTOR ASSEMBLY
    1. Check the rotor for an open circuit.
      GTY145787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        FOR 130 A TYPE

        Tester Connection Condition Specified Condition
        Slip ring - Slip ring 20°C (68°F) 2.3 to 2.7 Ω
        FOR 150 A TYPE

        Tester Connection Condition Specified Condition
        Slip ring - Slip ring 20°C (68°F) 1.5 to 1.9 Ω
        FOR 180 A TYPE

        Tester Connection Condition Specified Condition
        Slip ring - Slip ring 20°C (68°F) 1.4 to 1.8 Ω

        If the result is not as specified, replace the rotor assembly.

    2. Check if the rotor is grounded.
      GTY610775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        Slip ring - Rotor Always 10 kΩ or higher

        If the result is not as specified, replace the rotor assembly.

    3. Check that the slip rings are not rough or scored.

      If rough or scored, replace the rotor assembly.

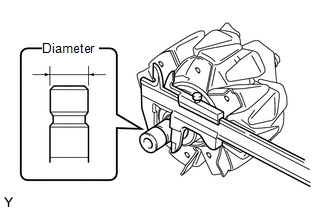

    4. Using a vernier caliper, measure the slip ring diameter.
      GTY553086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard diameter

      14.2 to 14.4 mm (0.559 to 0.567 in.)

      Minimum diameter

      14.0 mm (0.551 in.)

      If the diameter is less than the minimum, replace the rotor assembly.

  2. INSPECT GENERATOR BRUSH HOLDER ASSEMBLY

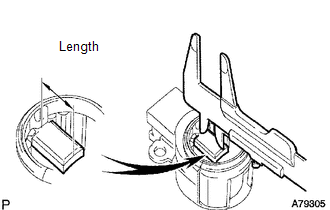

    GTY587622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a vernier caliper, measure the exposed brush length.

      Standard exposed length

      10.5 mm (0.413 in.)

      Minimum exposed length

      4.5 mm (0.177 in.)

      If the exposed length is less than the minimum, replace the brush holder assembly.

  3. INSPECT GENERATOR DRIVE END FRAME BEARING
    1. When rotating the bearing, check that there is no abnormal noise and that it rotates smoothly.
      GTY273707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If necessary, replace the bearing.

  4. REPLACE GENERATOR DRIVE END FRAME BEARING

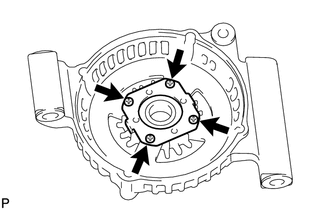

    GTY273705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 screws and retainer plate.
    2. Using SST and a hammer, tap out the bearing.
      GTY135725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00250
      • SST: 09950-70010
        1. 09951-07100
    3. for 130 A, 150 A Type:

      Install the generator drive end frame bearing.

      1. GTY288296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Using SST and a press, press in a new bearing.

        • SST: 09950-60010
          1. 09951-00470
        • SST: 09950-70010
          1. 09951-07100
      2. GTY273705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Install the retainer plate with the 4 screws.

        Torque: 2.3 N.m (23 kgf/cm, 20 in.lbf)

    4. for 180 A Type:

      Install the generator drive end frame bearing.

      1. GTY288296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Using SST and a press, press in a new bearing.

        • SST: 09950-60010
          1. 09951-00500
        • SST: 09950-70010
          1. 09951-07100
      2. GTY273705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Install the retainer plate with the 4 screws.

        Torque: 3.0 N.m (30 kgf/cm, 26 in.lbf)

  5. INSPECT GENERATOR ROTOR BEARING
    1. When rotating the bearing, check that there is no abnormal noise and that it rotates smoothly.
      GTY286497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If necessary, replace the generator rotor.
