Disassembly [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE GENERATOR PULLEY
    GTY585424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • SST: 09820-63011
      1. 09820-06010
      2. 09820-06021

    HINT:

    SST 1-A and B 09820-06010
    SST 2 09820-06021

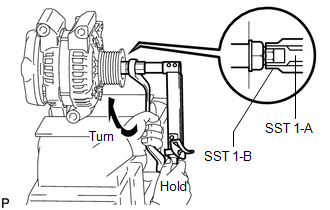

    1. Clamp the generator housing stay in a vise.
    2. Hold SST 1-A with a torque wrench, and tighten SST 1-B clockwise to the specified torque.

      Torque: 39 N.m (398 kgf/cm, 29 ft.lbf)

      NOTE:

      Check that SST is secured on the rotor shaft.

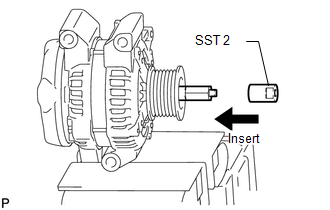

    3. Insert SST 2, and attach the pulley nut to SST 2.
      GTY547569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

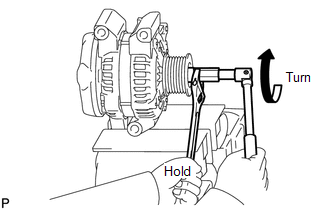

    4. To loosen the pulley nut, turn SST 1-A in the direction shown in the illustration.
      GTY538952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half turn.

    5. Remove the generator from SST 2.

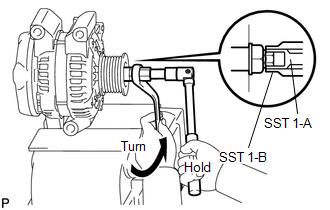

    6. Turn SST 1-B, and remove SST 1-A and B.
      GTY562148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the pulley nut and pulley.
  2. REMOVE GENERATOR REAR END COVER
    1. Place the generator on the pulley.
      GTY610717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and end cover.

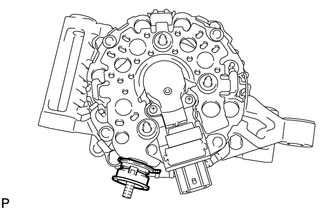

    3. Remove the terminal insulator.
      GTY273670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE GENERATOR BRUSH HOLDER ASSEMBLY

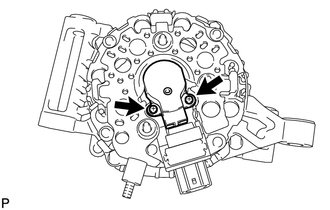

    1. Remove the 2 screws and brush holder.
      GTY605555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE GENERATOR COIL ASSEMBLY

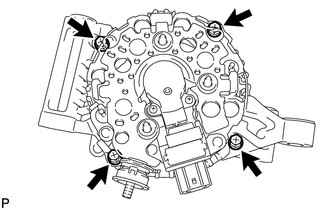

    1. Remove the 4 bolts.
      GTY605533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

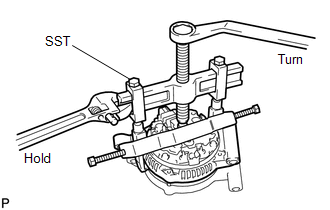

    2. Using SST, remove the coil assembly.
      GTY553303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09953-04020
        4. 09954-04010
        5. 09955-04071
        6. 09957-04010
        7. 09958-04011
    3. Remove the generator washer.
  5. REMOVE GENERATOR ROTOR ASSEMBLY
