Components [08/2015 - 08/2018]

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

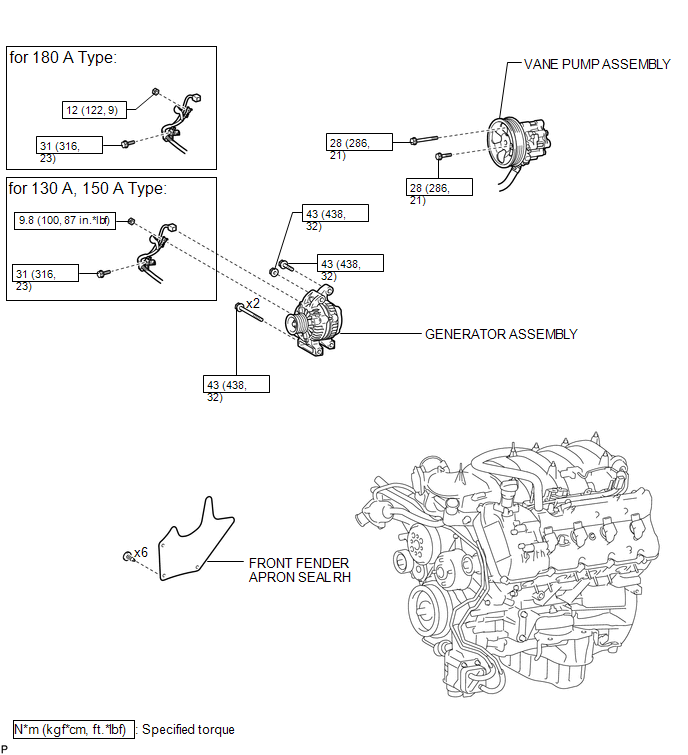

Fig 1: Generator Replacement Components With Torque Specifications [08/2015 - 08/2018] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

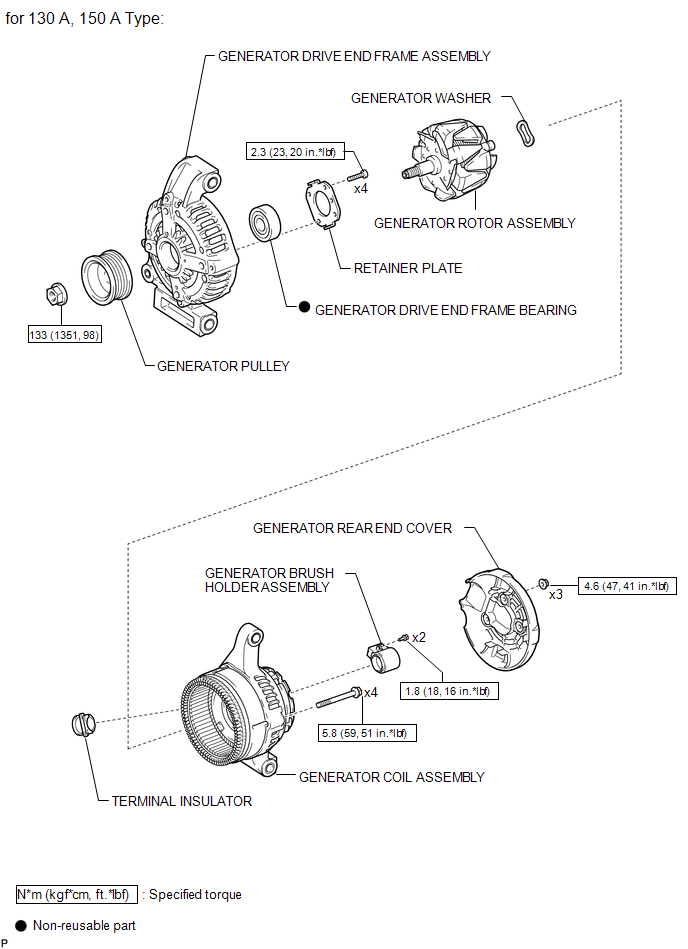

Fig 2: Generator Replacement Components With Torque Specifications [08/2015 - 08/2018] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

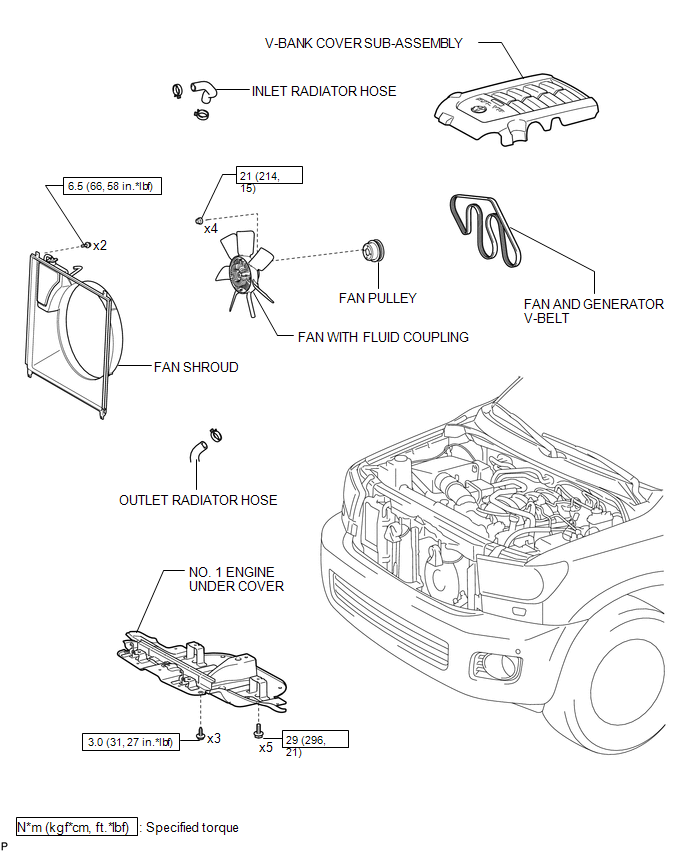

Fig 3: Generator Replacement Components With Torque Specifications [08/2015 - 08/2018] (3 Of 4)

Fig 4: Generator Replacement Components With Torque Specifications [08/2015 - 08/2018] (4 Of 4)
