Removal [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
1. Remove the fuel suction with pump and gauge tube assembly (Refer to REMOVAL [08/2015 - 10/2016] , or refer to REMOVAL [10/2016 - 08/2018] ).

REMOVE FUEL SENDER GAUGE ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

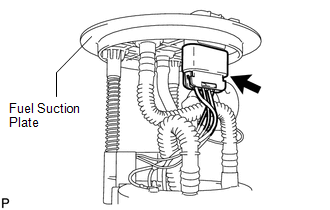

Disconnect the connector from the fuel suction plate.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the cap from the connector.

HINT:

Tape the screwdriver tip before use.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the 2 claws and remove the cover from the connector.

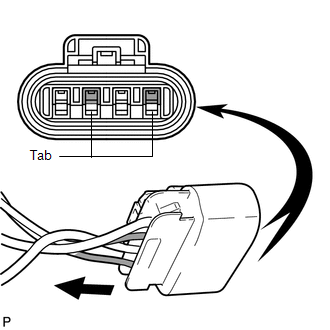

As shown in the illustration, unlatch the tabs of the 2 terminals and pull out the 2 wires (blue) from the connector.

Detach the 2 claws and disconnect the wire harness.

Push the tab to release the lock of the fuel sender gauge, and slide the fuel sender gauge to remove it.
