Installation [08/2015 - 08/2018]: Procedure
WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL FUEL SENDER GAUGE ASSEMBLY
Slide the fuel sender gauge onto the fuel suction support to install it.
Attach the 2 claws to connect the wire harness.

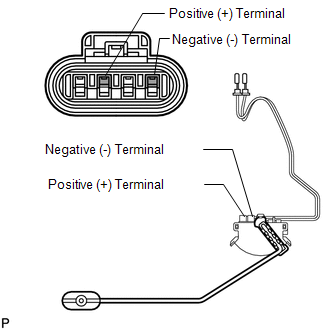

Insert the 2 wire terminals into the connector.
NOTE:- When inserting the wire terminals into the connector, be sure to insert the positive (+) terminal and negative (-) terminal into the correct locations.
- Be careful not to deform the terminals.

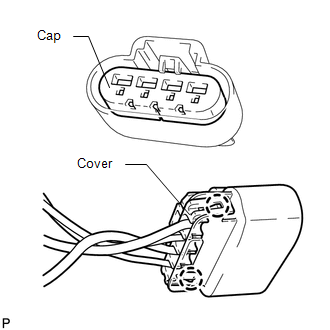

Attach the 2 claws to install the cover to the back end of the connector, and then install the cap.
Connect the connector to the fuel suction plate.
- INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
- Install the fuel suction with pump and gauge tube assembly (Refer to INSTALLATION [08/2015 - 10/2016] , or refer to INSTALLATION [10/2016 - 08/2018] ).
