Removal [08/2015 - 10/2016]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL TANK ASSEMBLY
    1. Remove the fuel tank assembly (Refer to REMOVAL [08/2015 - 08/2018] ).
  2. REMOVE FUEL PRESSURE SWITCHING VALVE ASSEMBLY

    See step  8

  3. REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

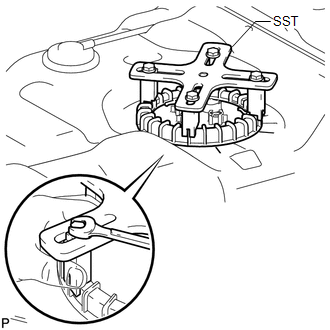

    1. GTY586172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Set SST on the retainer.

      • SST: 09808-14030

      HINT:

      • Securely attach the claws of SST to the protrusion of the retainer and fix SST in place.
      • Install SST while pressing the claws of SST against the retainer (towards the center of SST).

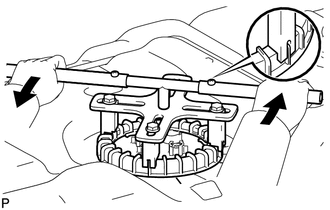

    2. Using SST, loosen the retainer.
      GTY540390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09808-14030
      NOTE:
      • Do not use any tools other than those specified in this operation. Damage to the retainer or the fuel tank may result.
      • While pressing down on SST so that the claws of SST do not slip off the protrusion of the retainer, turn the retainer counterclockwise to loosen it.

      HINT:

      The protrusion of the retainer fit in the ends of SST.

    3. Remove the retainer.
    4. Remove the fuel suction with pump and gauge tube assembly from the fuel tank.
      NOTE:

      Be careful not to bend the arm of the fuel sender gauge.

    5. Remove the gasket from the fuel tank.
  4. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

    See step  2

  5. REMOVE FUEL SENDER GAUGE ASSEMBLY

    See step  2
