Installation [10/2016 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FUEL SENDER GAUGE ASSEMBLY
See step 1
INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
See step 1

INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

HINT:

Perform "Inspection After Repairs" after replacing the fuel pump.

Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018]

Apply a light coat of gasoline to a new gasket and install it to the fuel tank.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

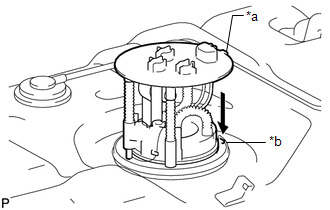

Align the protrusion of the fuel suction with pump and gauge tube assembly with the groove of the fuel tank.

TEXT IN ILLUSTRATION

*a	Protrusion
*b	Groove

Install the fuel suction with pump and gauge tube assembly into the fuel tank.
NOTE:
Be careful not to bend the arm of the fuel sender gauge.

Apply a co-rotation prevention check mark to the fuel suction with pump and gauge tube assembly.

HINT:

Perform this procedure when replacement of the fuel suction with pump and gauge tube assembly is necessary.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Co-rotation Prevention Check Mark

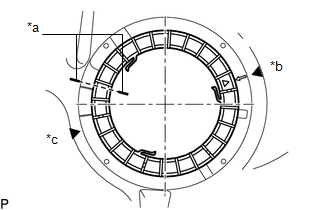

Temporarily place the fuel pump gauge retainer by aligning the rotational start point mark of a new fuel pump gauge retainer with the rotational start point mark of the fuel tank assembly while pressing the fuel suction with pump and gauge tube into the fuel tank assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Rotational Start Point Mark (Fuel Tank Assembly Side)
*b	Rotational Start Point Mark (Fuel Pump Gauge Retainer Side)

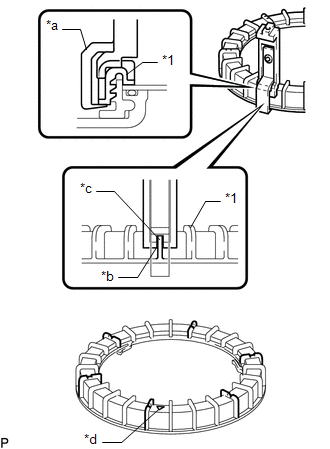

Set 4 SSTs (claw sets) to the fuel pump gauge retainer and temporarily install.

SST: 09808-14031
1. 09808-01080
2. 09808-01090
3. 09808-01100

NOTE:

Align the cutout of SST (claw set) to the rib of the fuel pump gauge retainer.
Do not place SST on the rotational start point mark of the fuel pump gauge retainer, otherwise SST (claw set) cannot be set correctly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Fuel Pump Gauge Retainer
*a	SST (claw set)
*b	Rib
*c	Cutout
*d	SST (Claw Set) Incorrect Installation Point (Rotational Start Point Mark of Fuel Pump Gauge Retainer)

While firmly pressing the claw of SST into rib of the fuel pump gauge retainer, tighten the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Fuel Pump Gauge Retainer
*a	SST (Claw Set)
*b	Hook
	Press
	SST (Bolt)

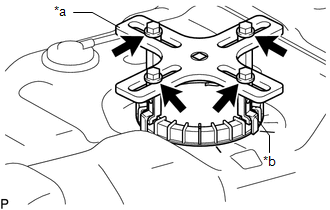

Temporarily install SST (plate) to SST (claw set) with 4 SSTs (bolts).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	SST (Plate)
*b	SST (Claw Set)
	SST (Bolt)

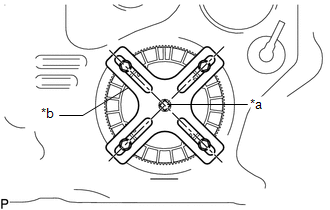

Adjust the position of SST (plate) so that the setting hole of SST (handle) aligns with the center of the fuel pump gauge retainer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Center of Fuel Pump Gauge Retainer
*b	SST (Plate)

While firmly pressing the SST (claw set) into rib of the fuel pump gauge retainer, tighten SST (bolt).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Fuel Pump Gauge Retainer
*a	SST (Plate)
*b	SST (Claw Set)
*c	SST (Bolt)
*d	Rib
	Press

While one person presses the fuel suction with pump and gauge tube assembly into the fuel tank assembly, have another person firmly press the fuel pump gauge retainer into the threads of the fuel tank assembly and tighten approximately one and a half turns.

NOTE:

Do not use any tools other than SST, such as a screwdriver, etc.
Do not use excessive force when pressing down on SST, as the fuel suction with pump and gauge tube assembly will place excessive force on the pump gauge retainer and be difficult to remove, and parts may be damaged.
Do not use an impact wrench or turn the SST handle with excessive force, as parts may be damaged.
Do not rotate the fuel pump gauge retainer when the co-rotation prevention check mark is out of place.

*a	Co-rotation Prevention Check Mark
*b	Tightening Start Position
*c	One and Half Rotation Position

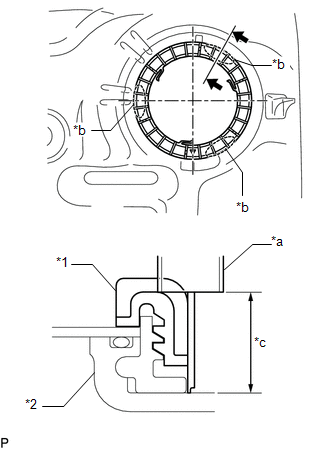

Check the tightening condition of the fuel pump gauge retainer.

Using a vernier caliper, measure the upper surface dimensions of the fuel tank assembly at the 3 positions as shown in the illustration.

Standard

Measurement difference is within 3 mm.

NOTE:

If the measurement difference is approximately 6 mm, the threads misaligned by 1 threads (6 mm) and the fuel pump gauge retainer must be installed again.

*1	Fuel Pump Gauge Retainer
*2	Fuel Tank Assembly
*a	Vernier Caliper
*b	Measurement Position
*c	Measurement Height

While one person presses the fuel tank vent tube assembly into the fuel tank assembly, have another person slowly tighten approximately half turns.

*a	SST (Plate)
*b	Person in Charge of Tightening
*c	Person in Charge of Supporting

Install SST (handle) to SST (plate).
- SST: 09808-14031
  1. 09808-01010
  2. 09808-01020

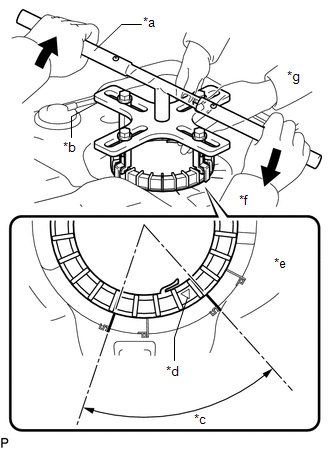

While one person presses the fuel suction with pump and gauge tube assembly onto the fuel tank sub-assembly, have another person use SST (handle) and slowly tighten the fuel pump gauge retainer until it reaches the tightening complete position.

*a	SST (Handle)
*b	SST (Plate)
*c	Tightening Complete Position
*d	Rotational Start Point Mark of Fuel Pump Gauge Retainer
*e	Rotational Start Point Mark of Fuel Tank Assembly
*f	Person in Charge of Tightening
*g	Person in Charge of Supporting
	Tighten

INSTALL FUEL PRESSURE SWITCHING VALVE ASSEMBLY
See step 2
INSTALL FUEL TANK ASSEMBLY
1. Install the fuel tank assembly (Refer to INSTALLATION [08/2015 - 08/2018] ).
